- About Product
- Competitive Analysis

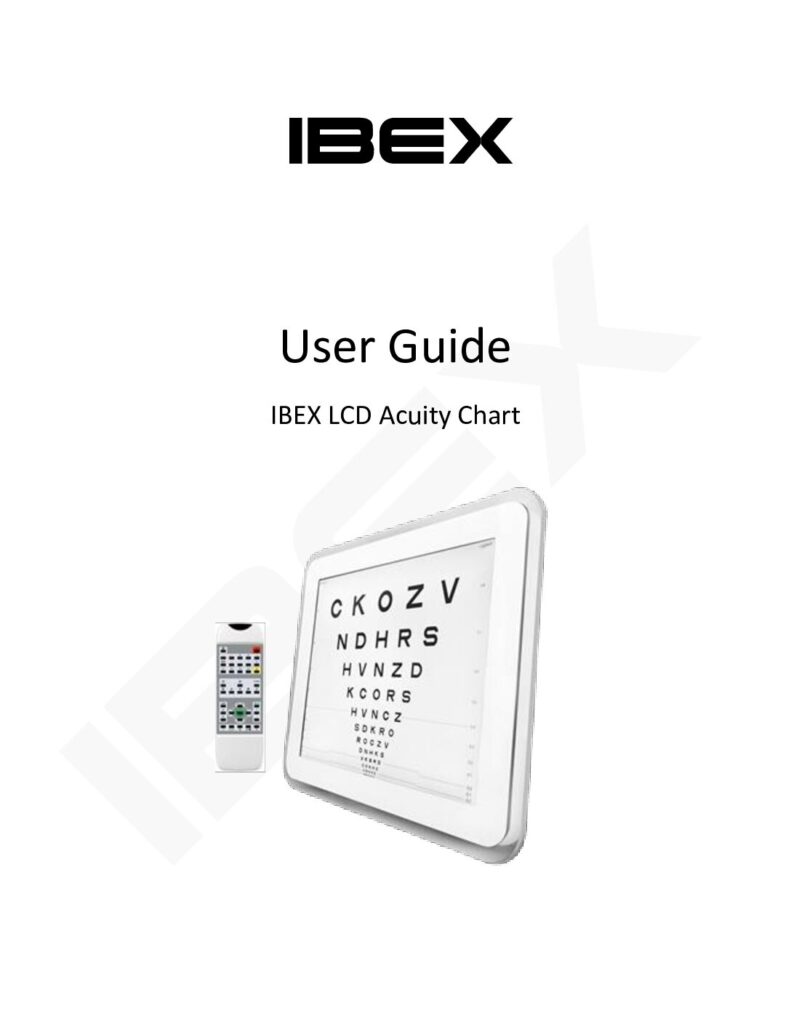

- User Manual
Key Features
|
|
Optotypes
 Square – Tumbling E |

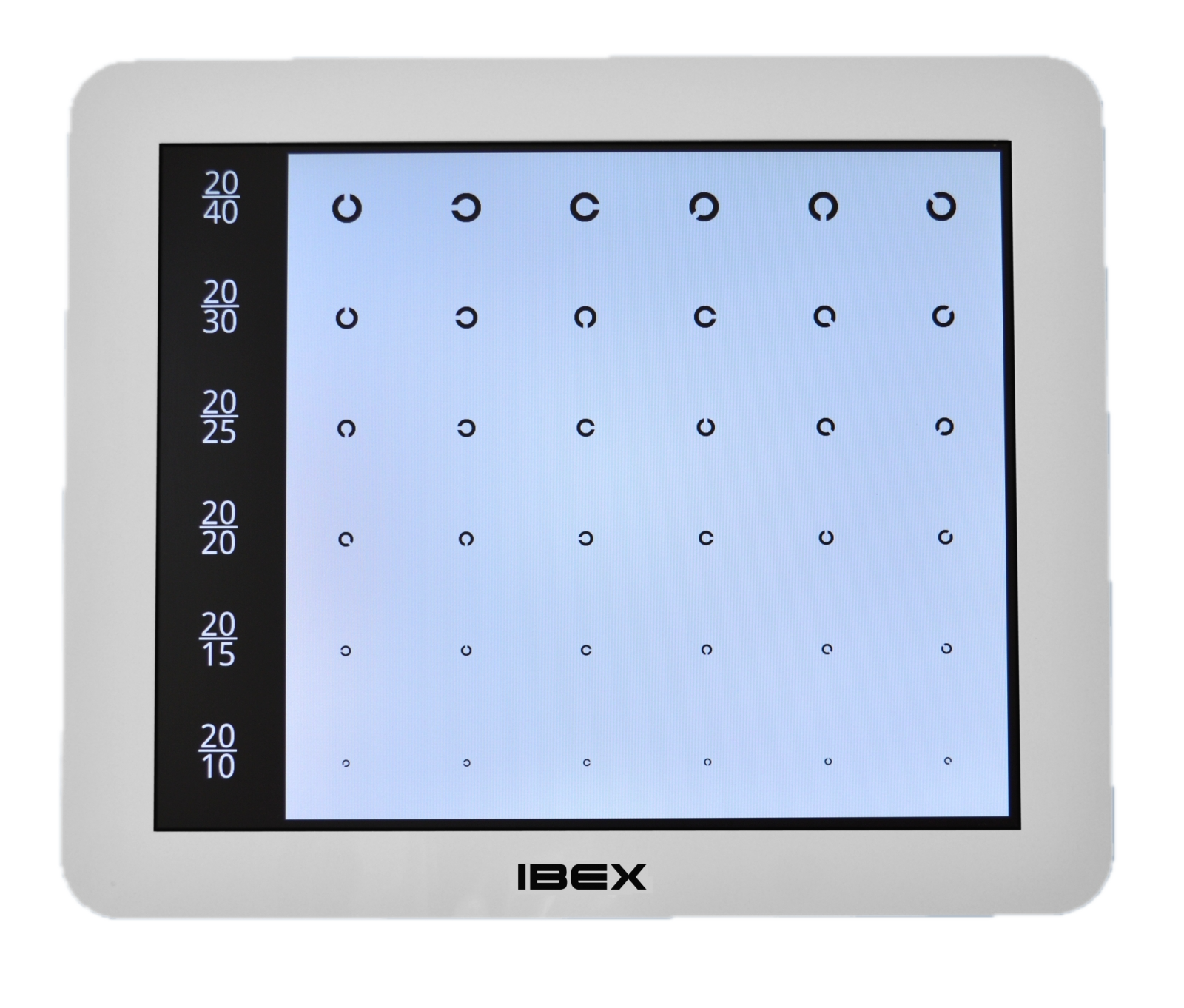

 Square – Landolt C |

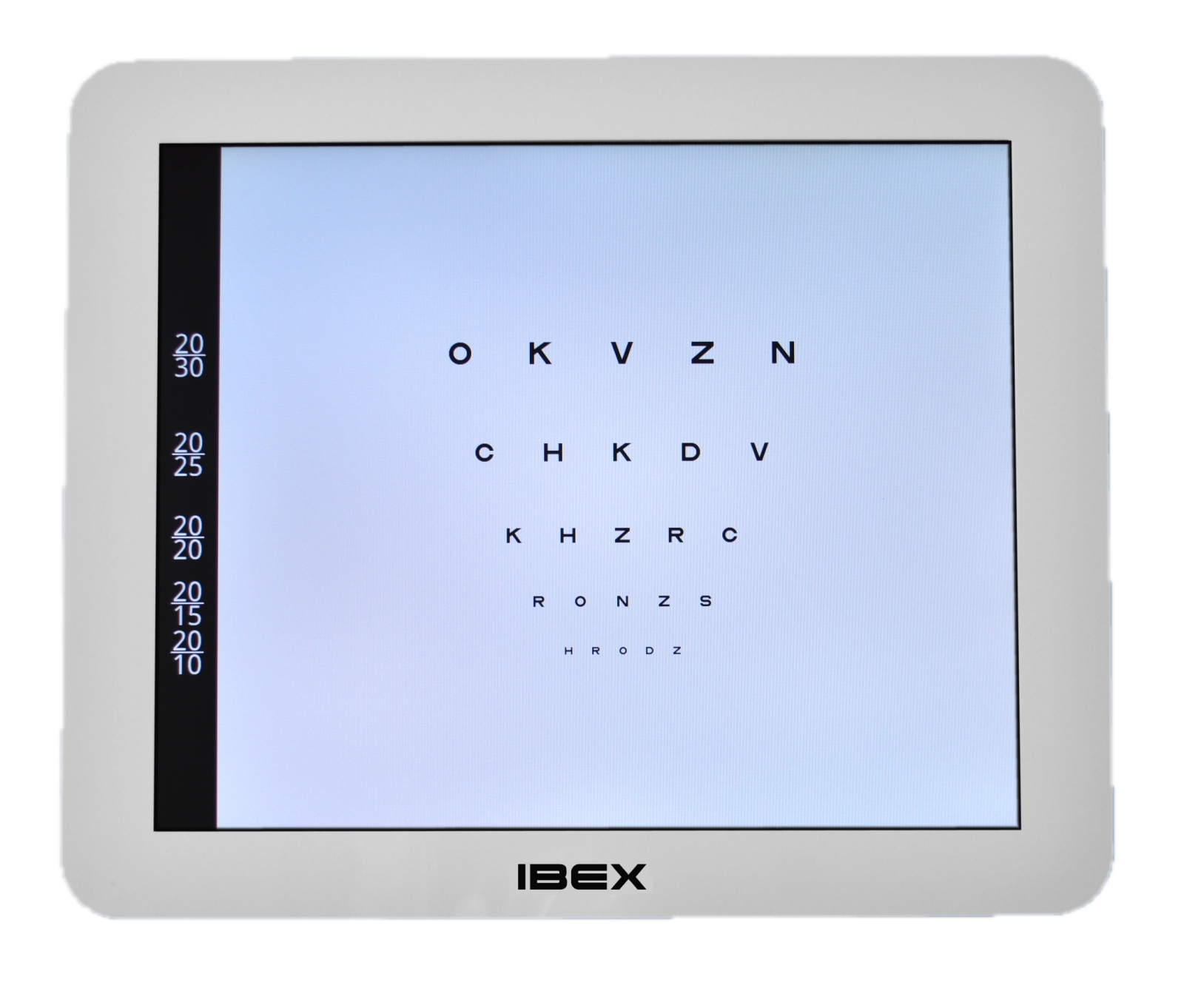

 Square – Snellen Letters |
 Square – Numbers |
 Square – Allen Pics |

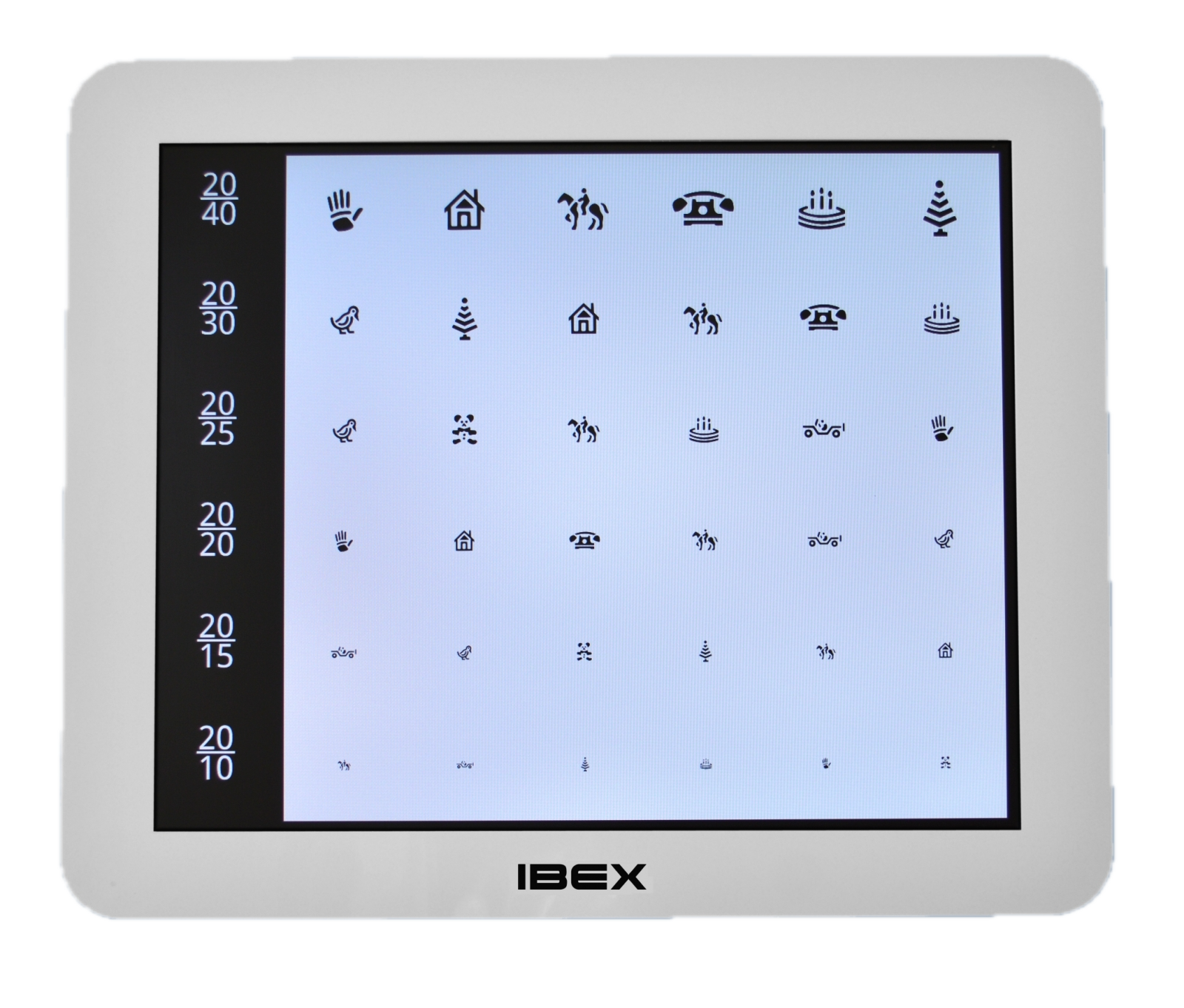

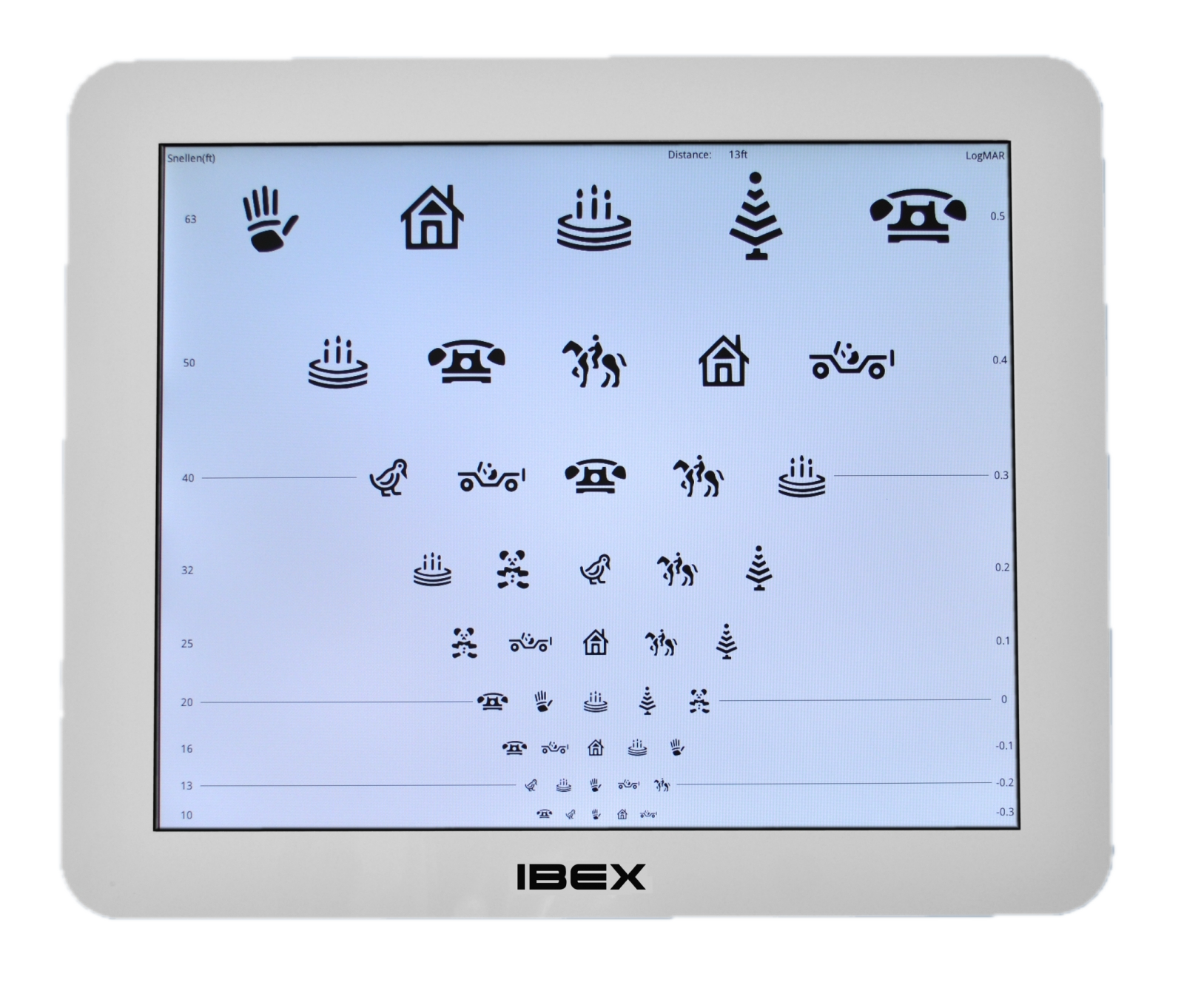

 Square – Children Pics |

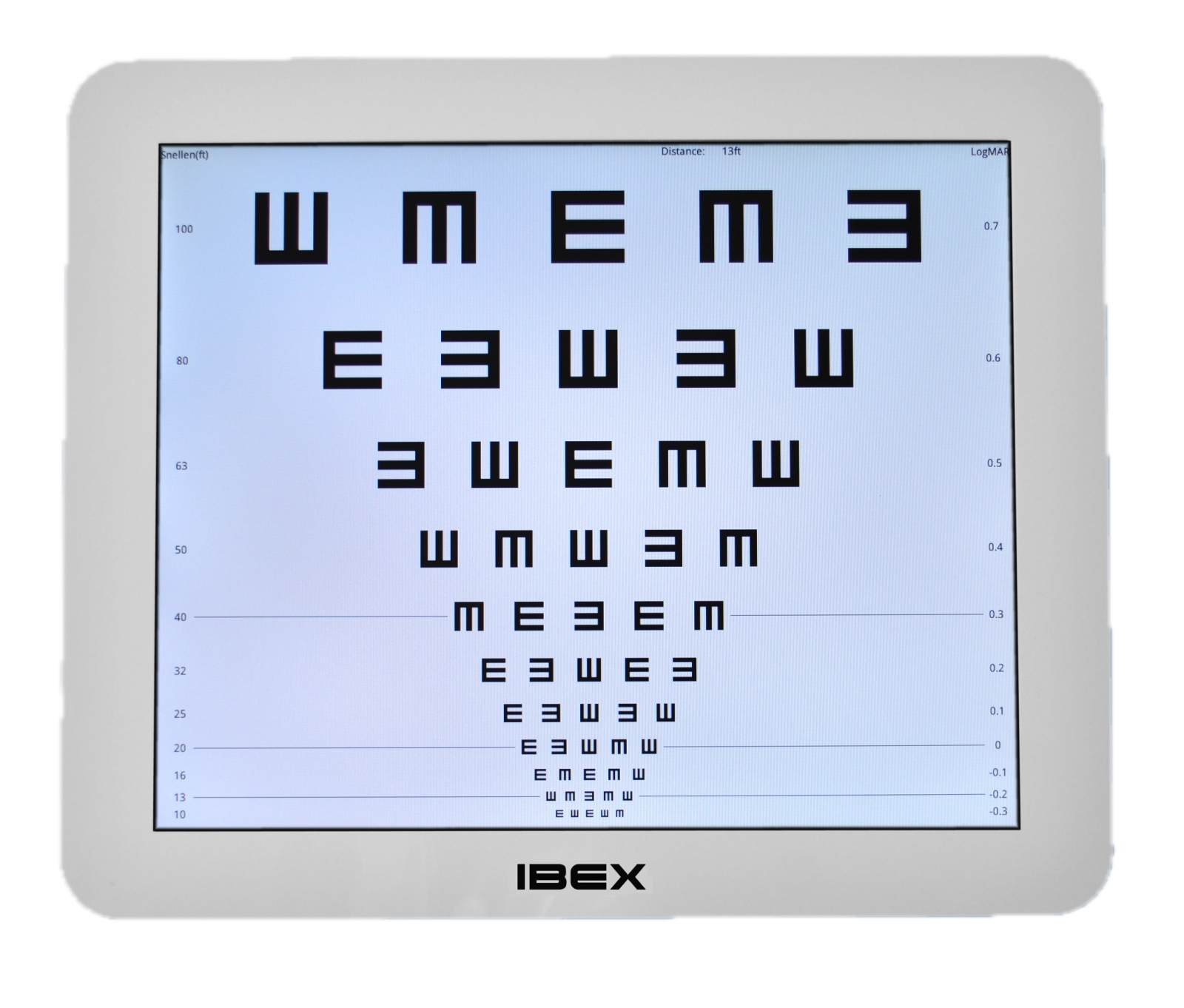

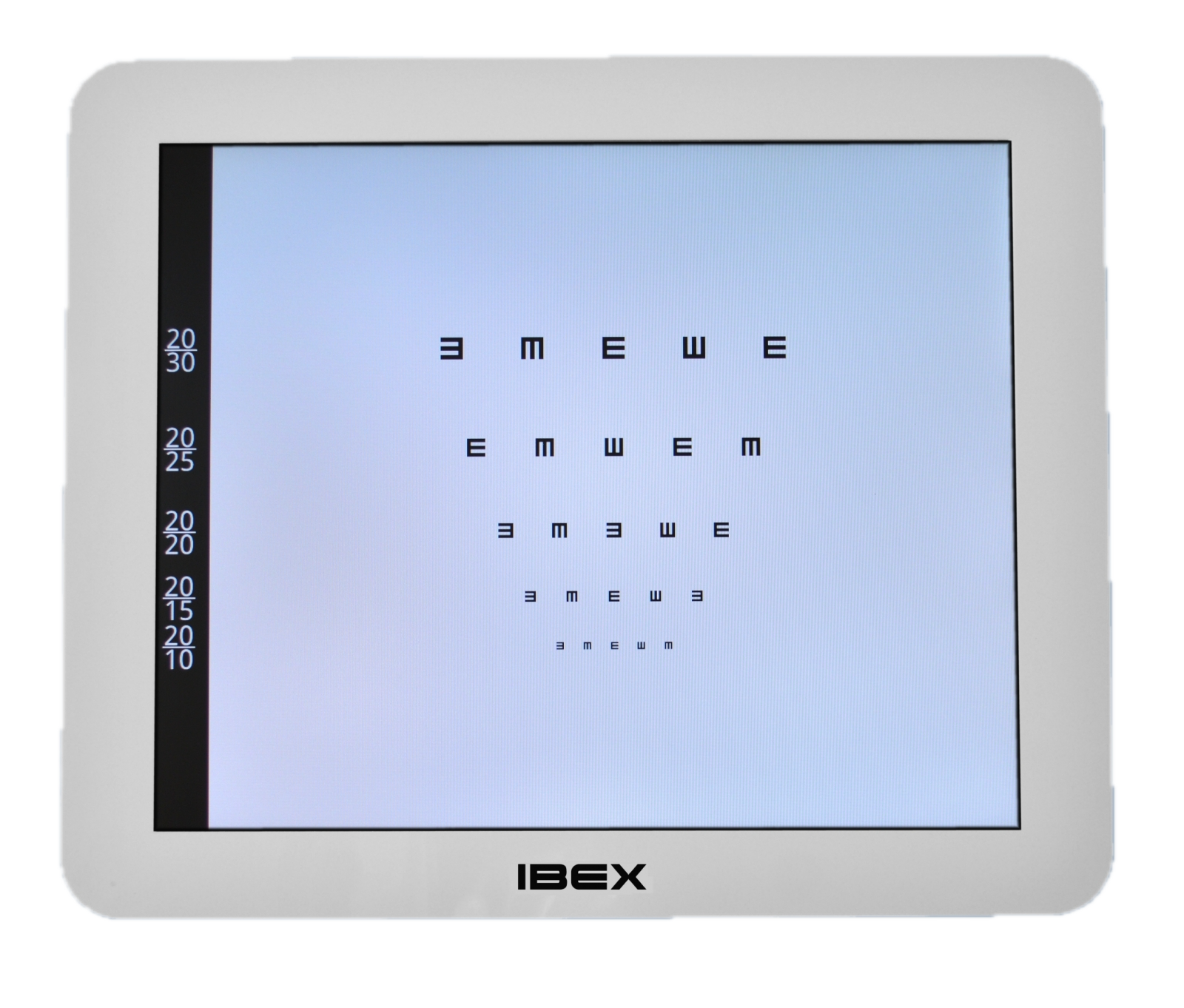

 V-Shape – Tumbling E |
 V-Shape – Landolt C |
 V-Shape Snellen – Letters |
 V-Shape – Numbers |
 V-Shape – Allen Pics |
 V-Shape – Children Pics |
Specialty Charts
 Cross Cylinder |

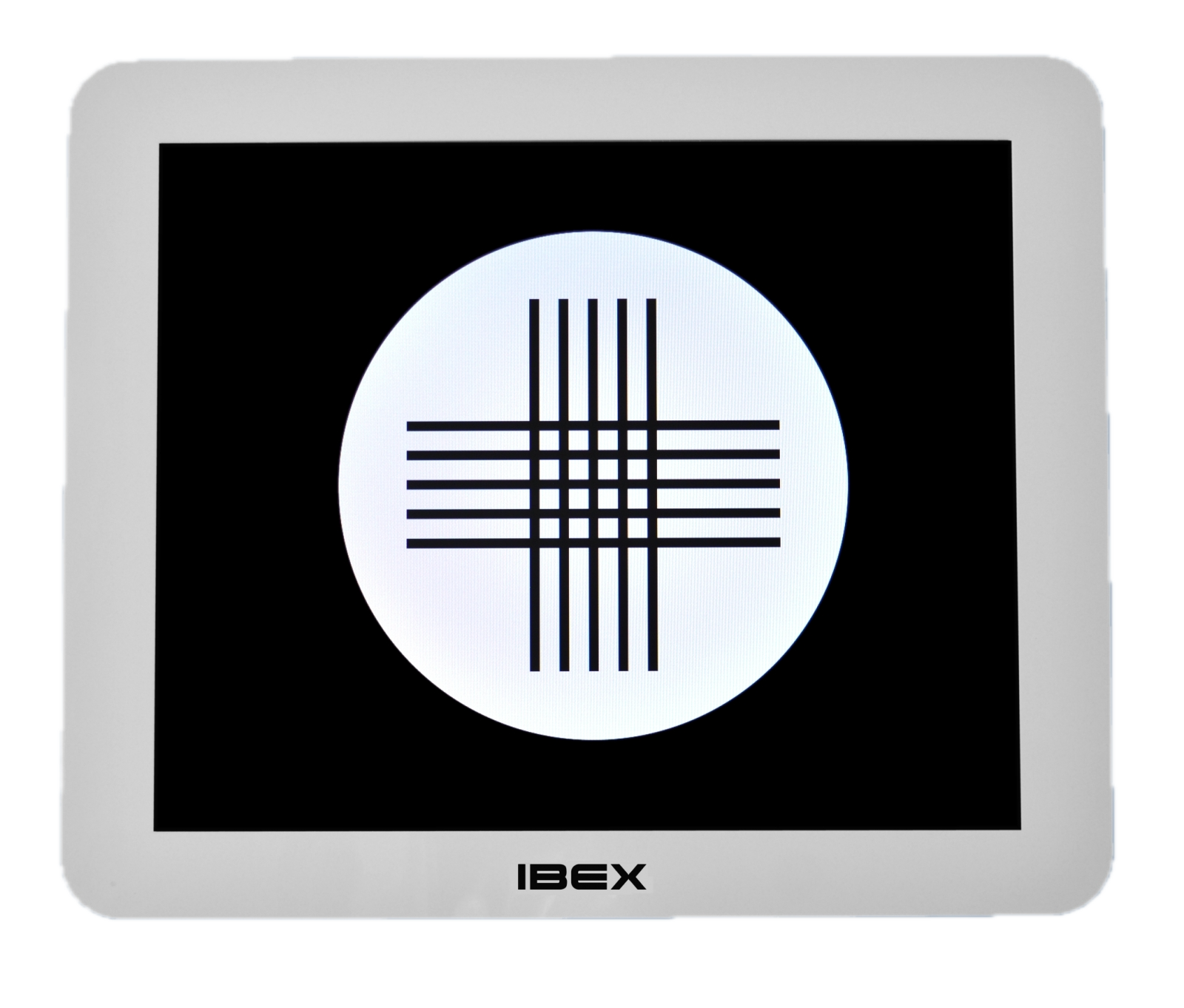

 Cross Grid |
 Dotted Lines Astigmatic |

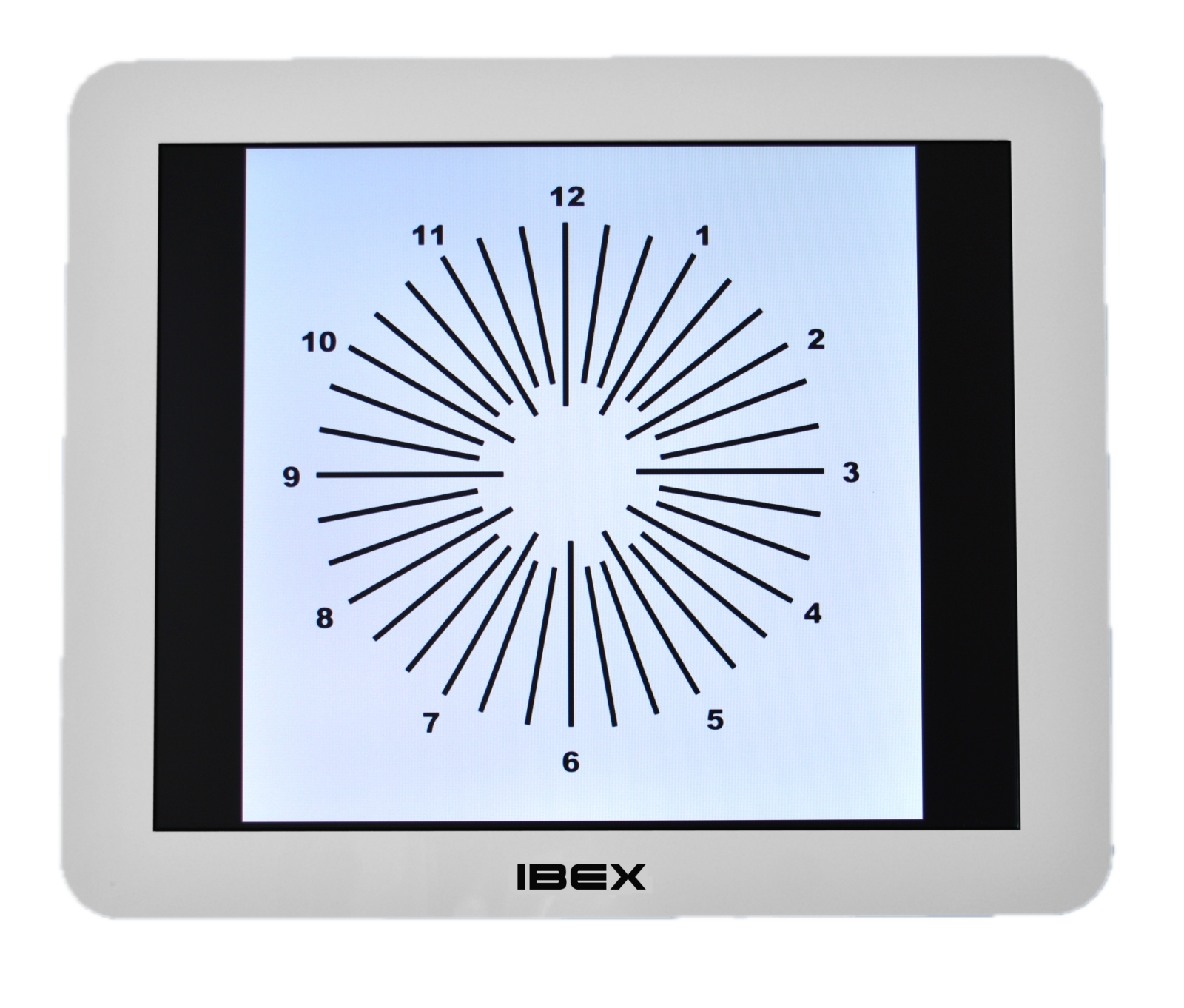

 Full Lines Astigmatic |

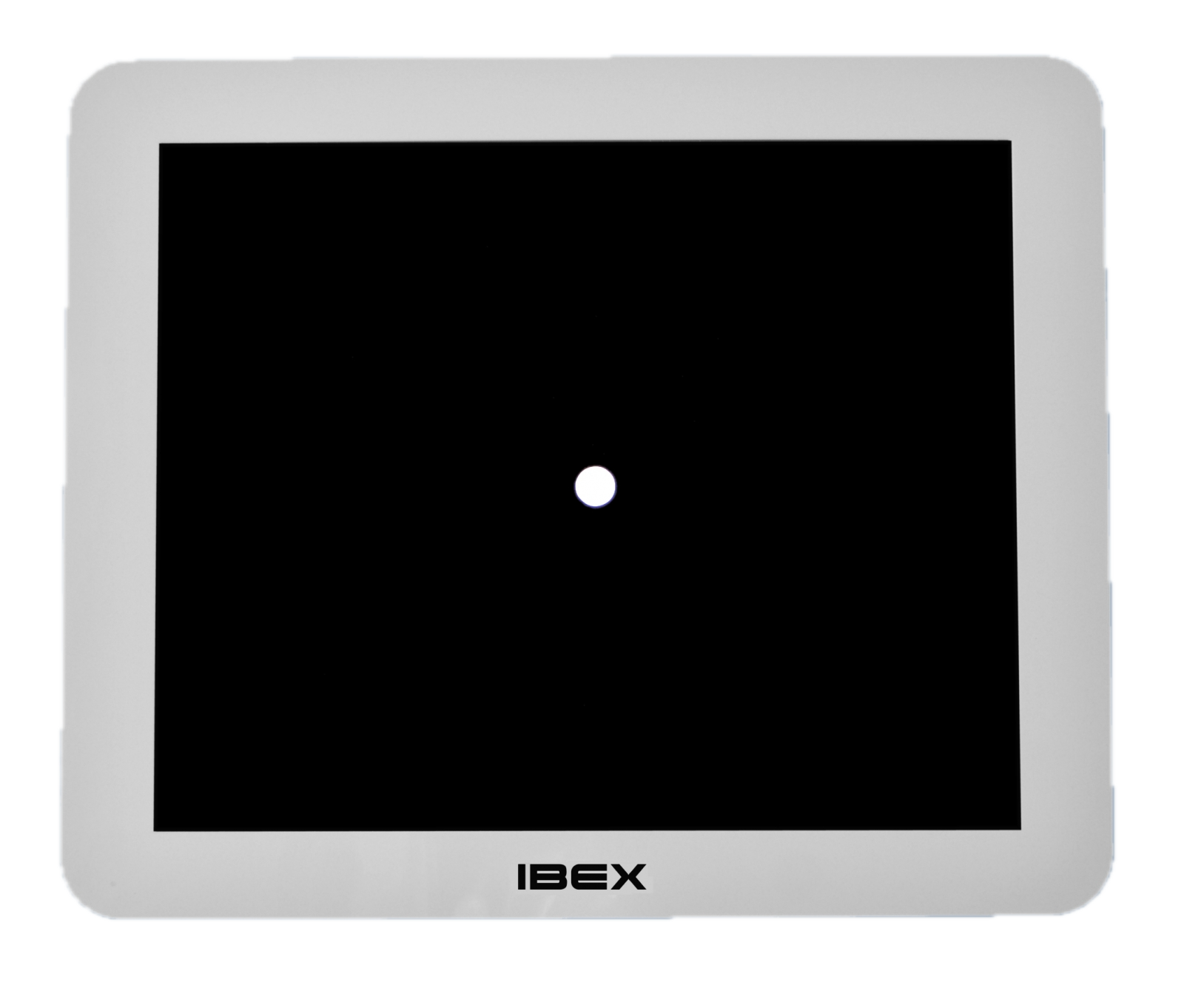

 Fixation Point |

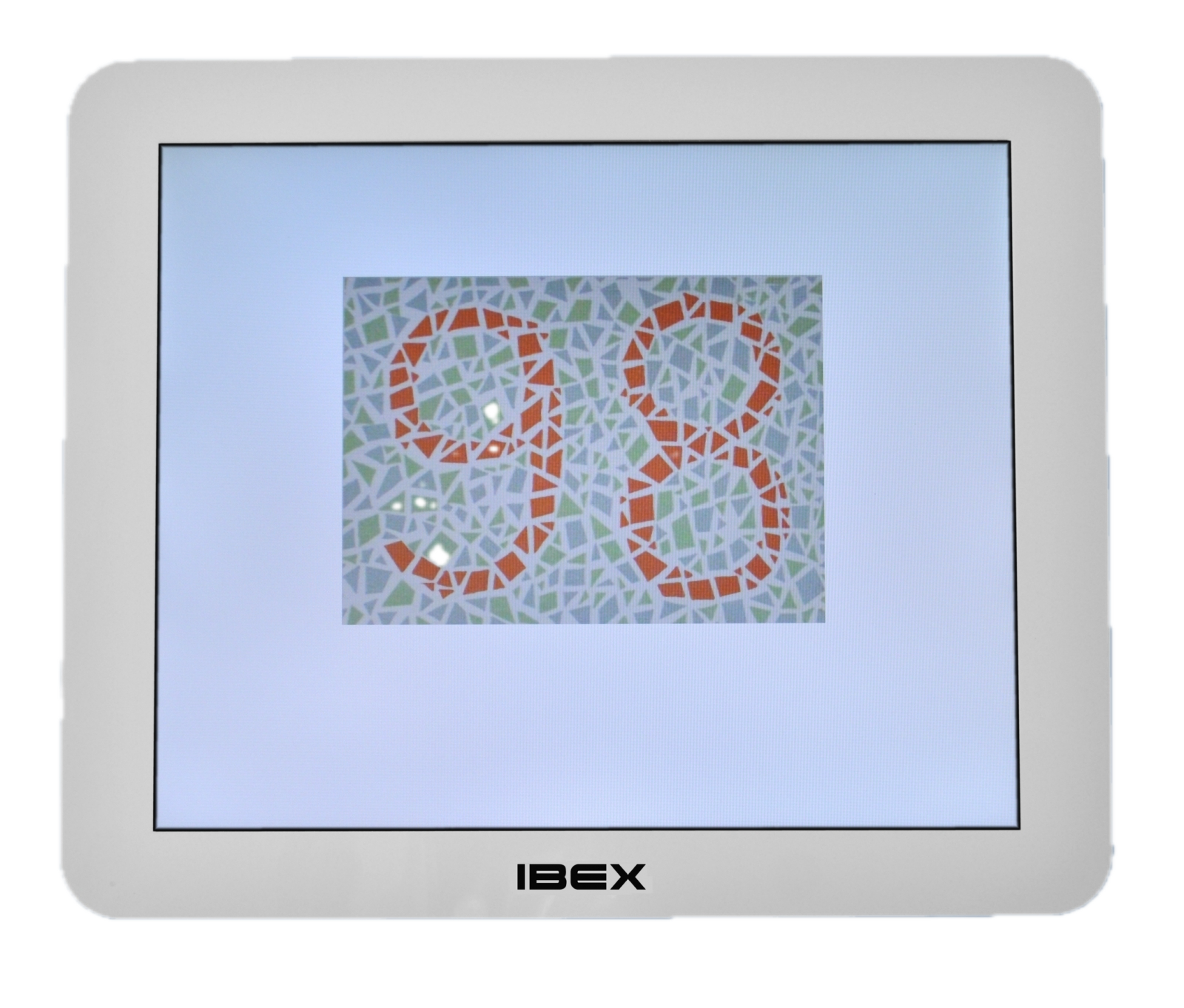

 Ishihara |
 V-Shape – Tumbling E |

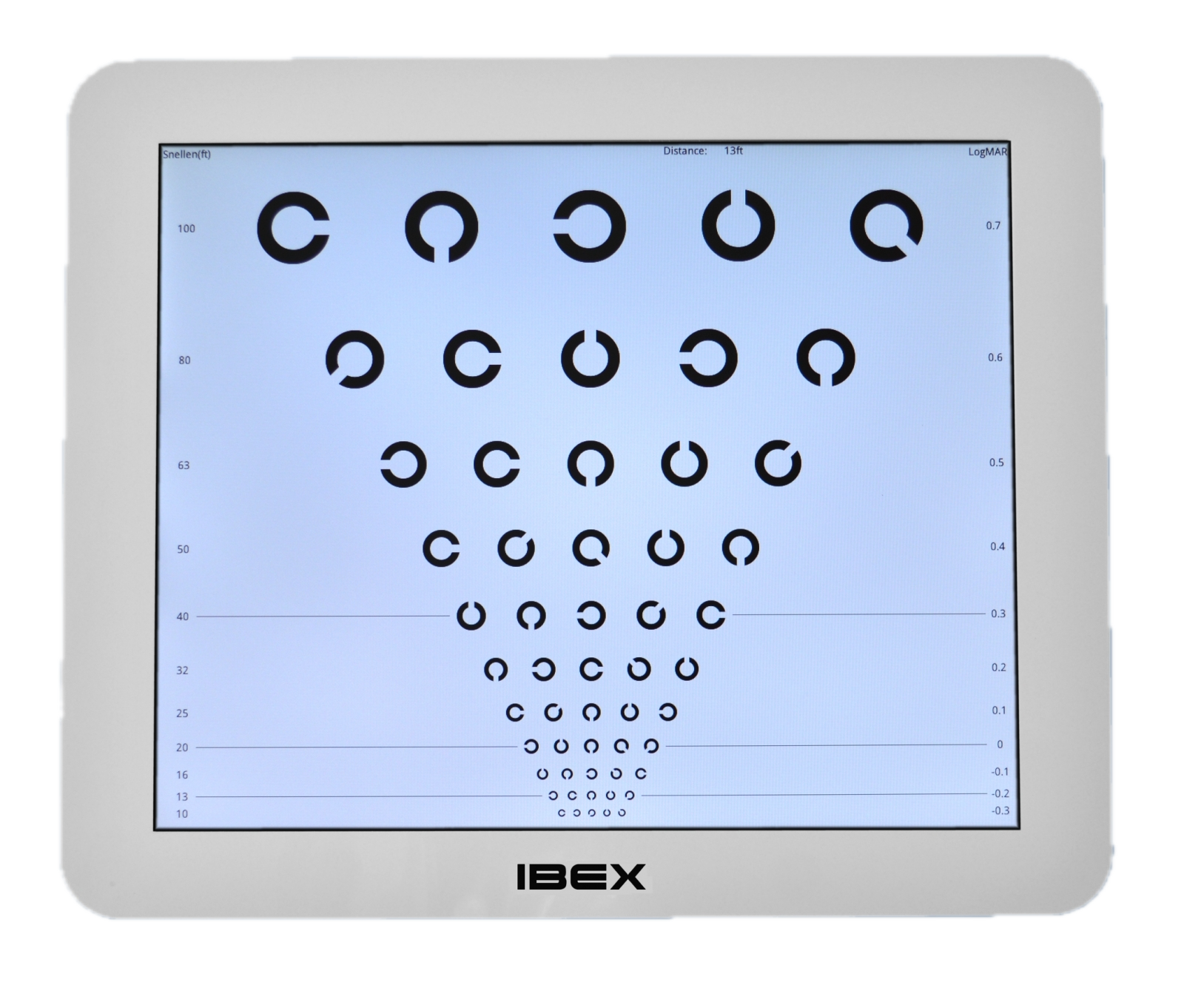

 V-Shape – Landolt C |
 V-Shape – Snellen Letters |

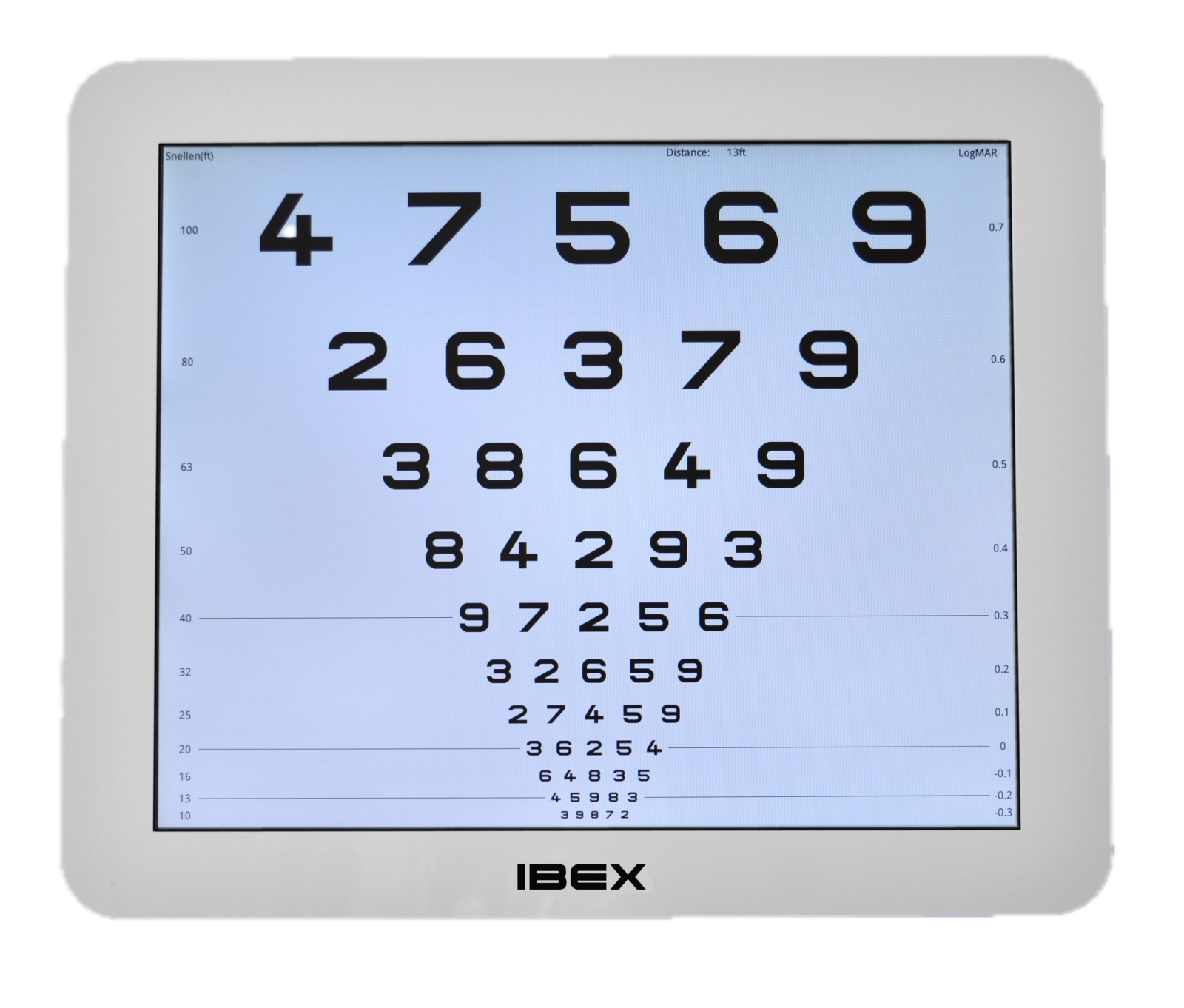

 V-Shape – Numbers |

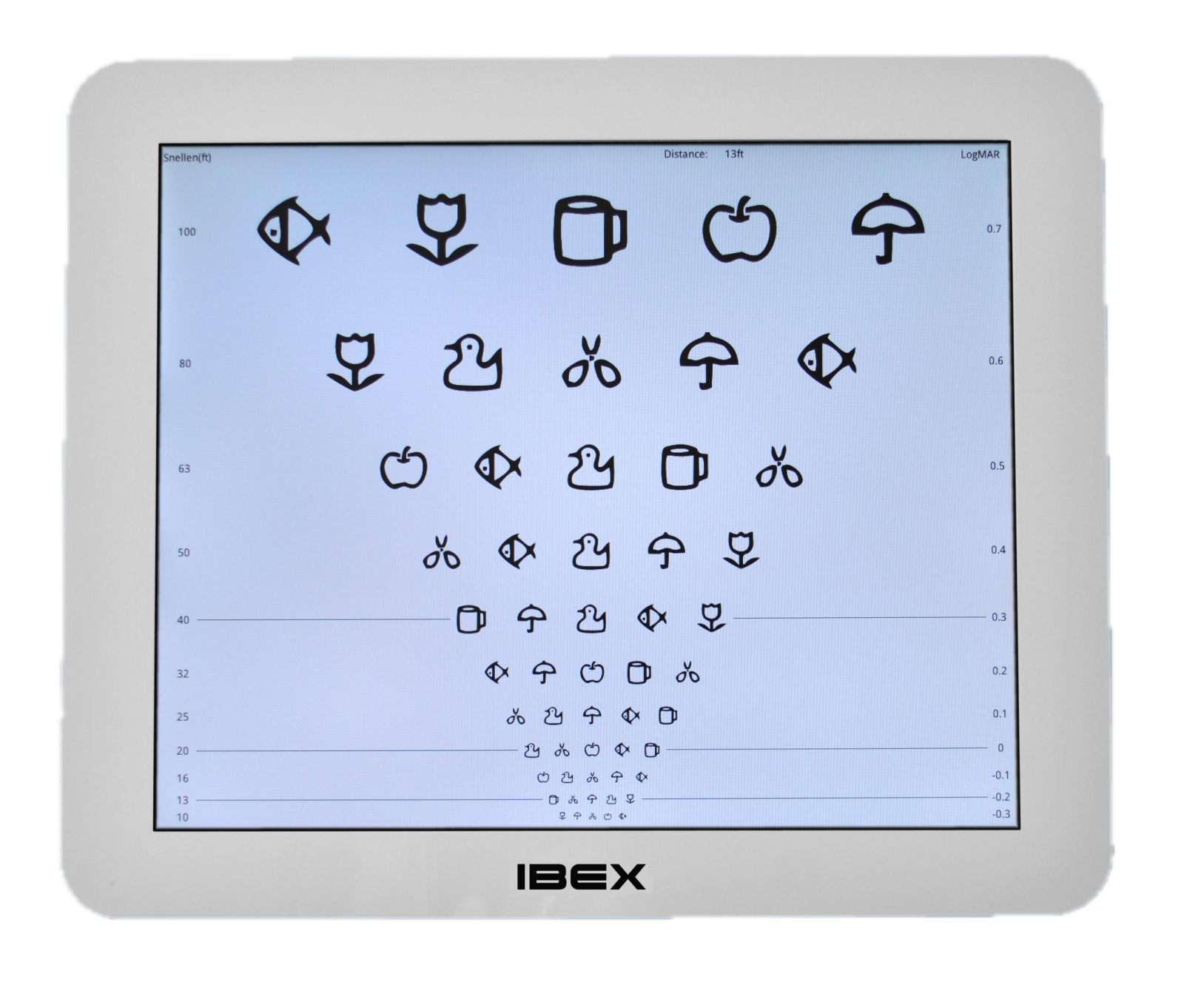

 V-Shape – Allen Pics |
 V-Shape – Children Pics |
 Red – Green Panel |

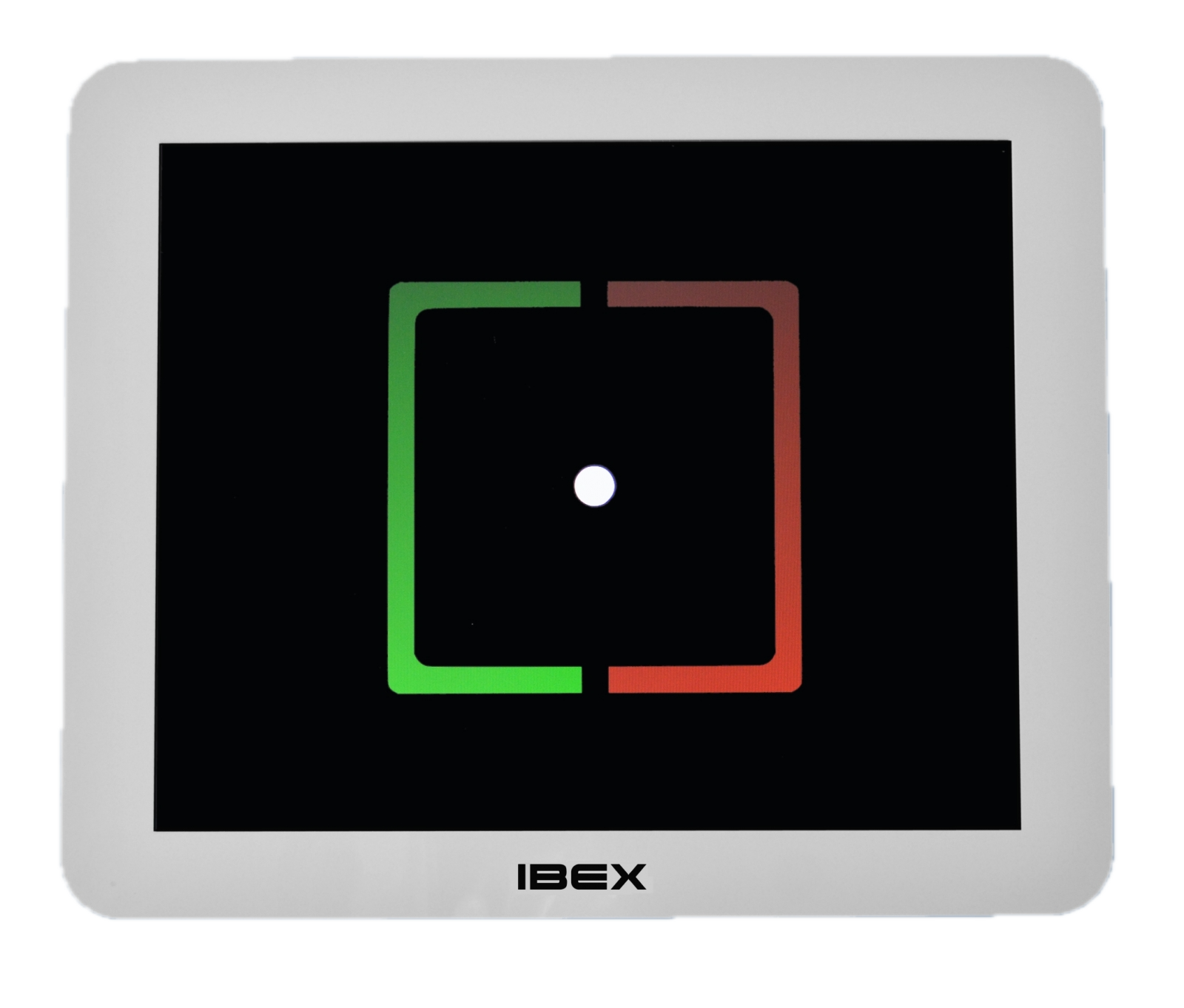

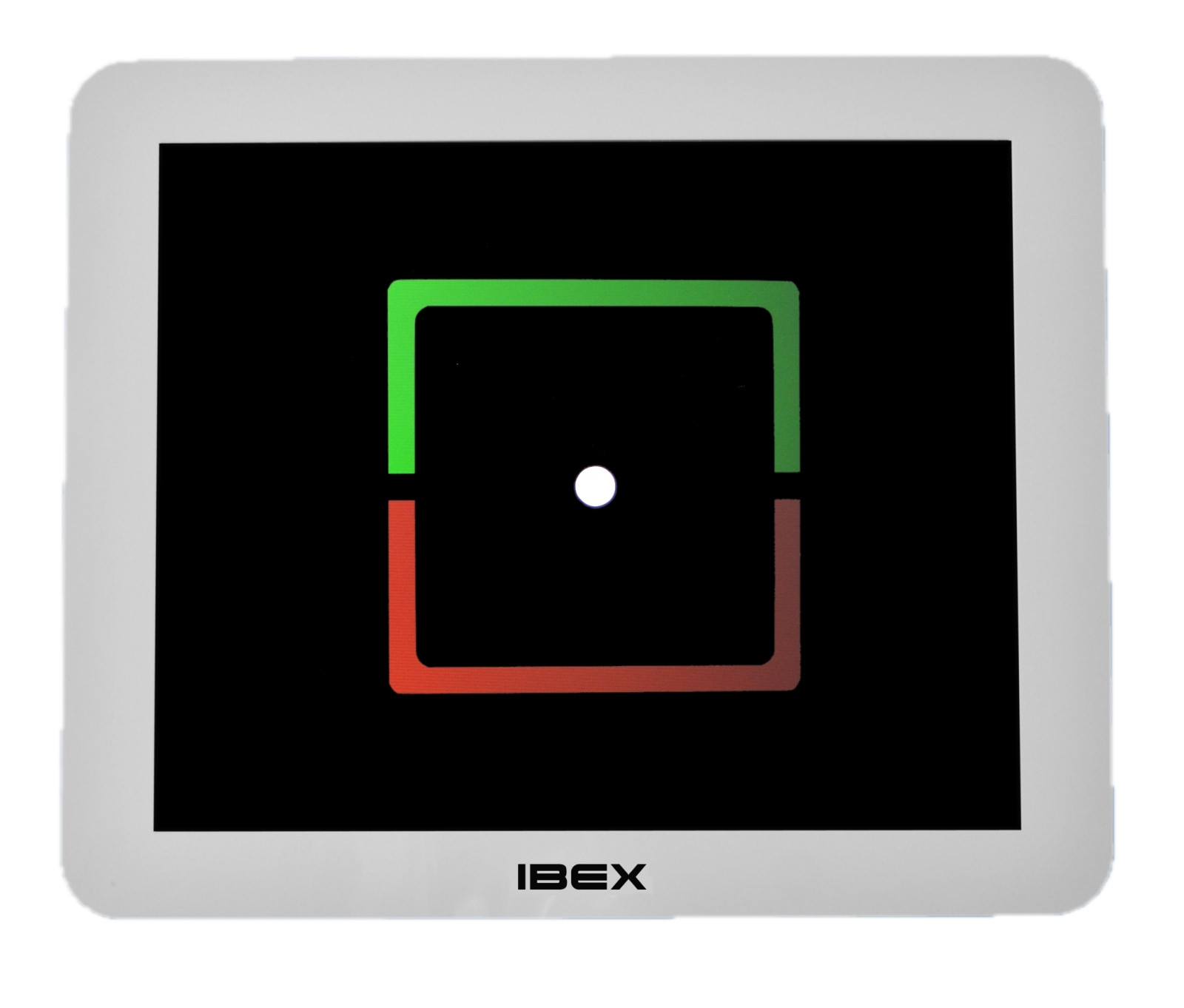

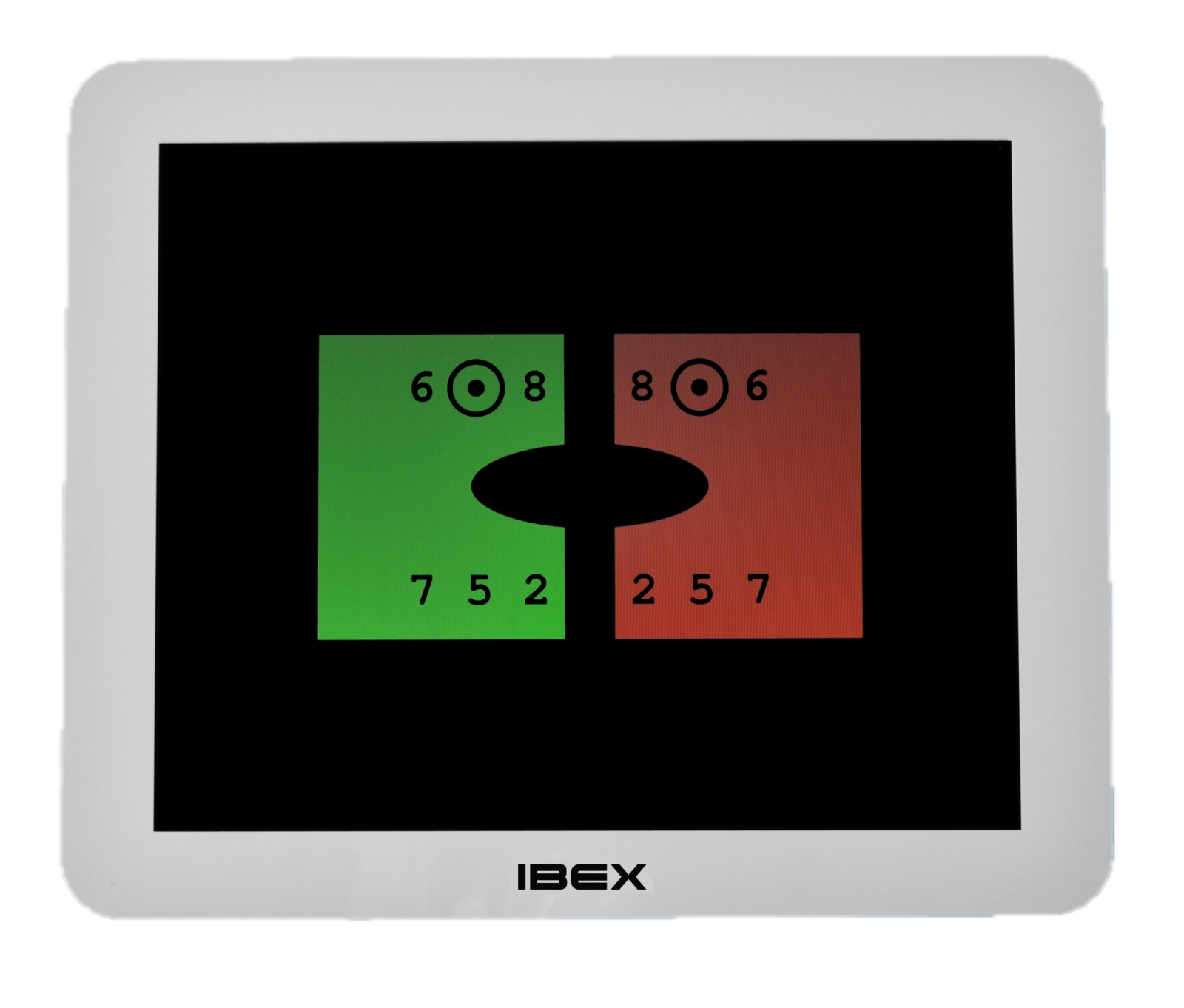

 Coincidence |
 Coincidence |

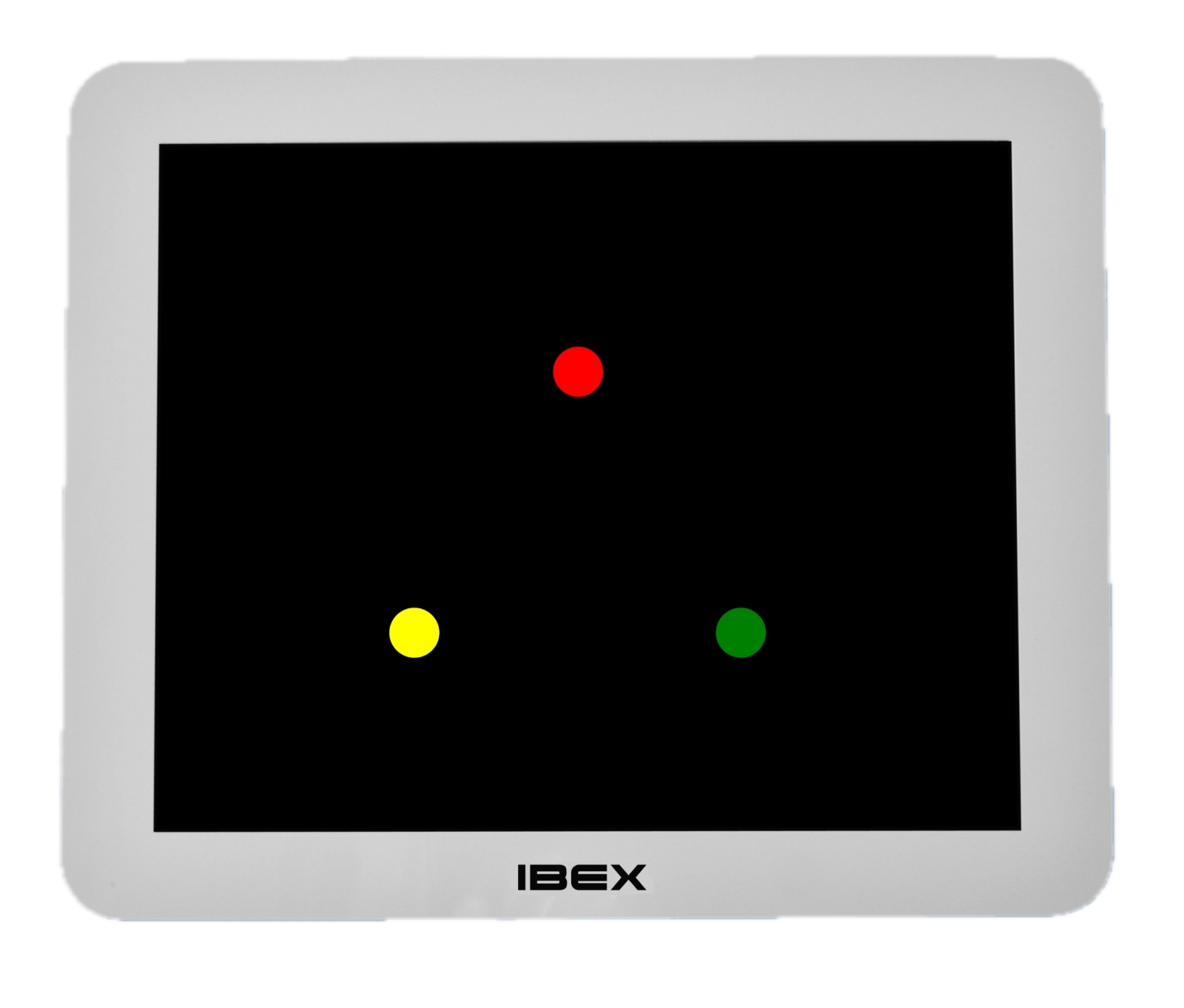

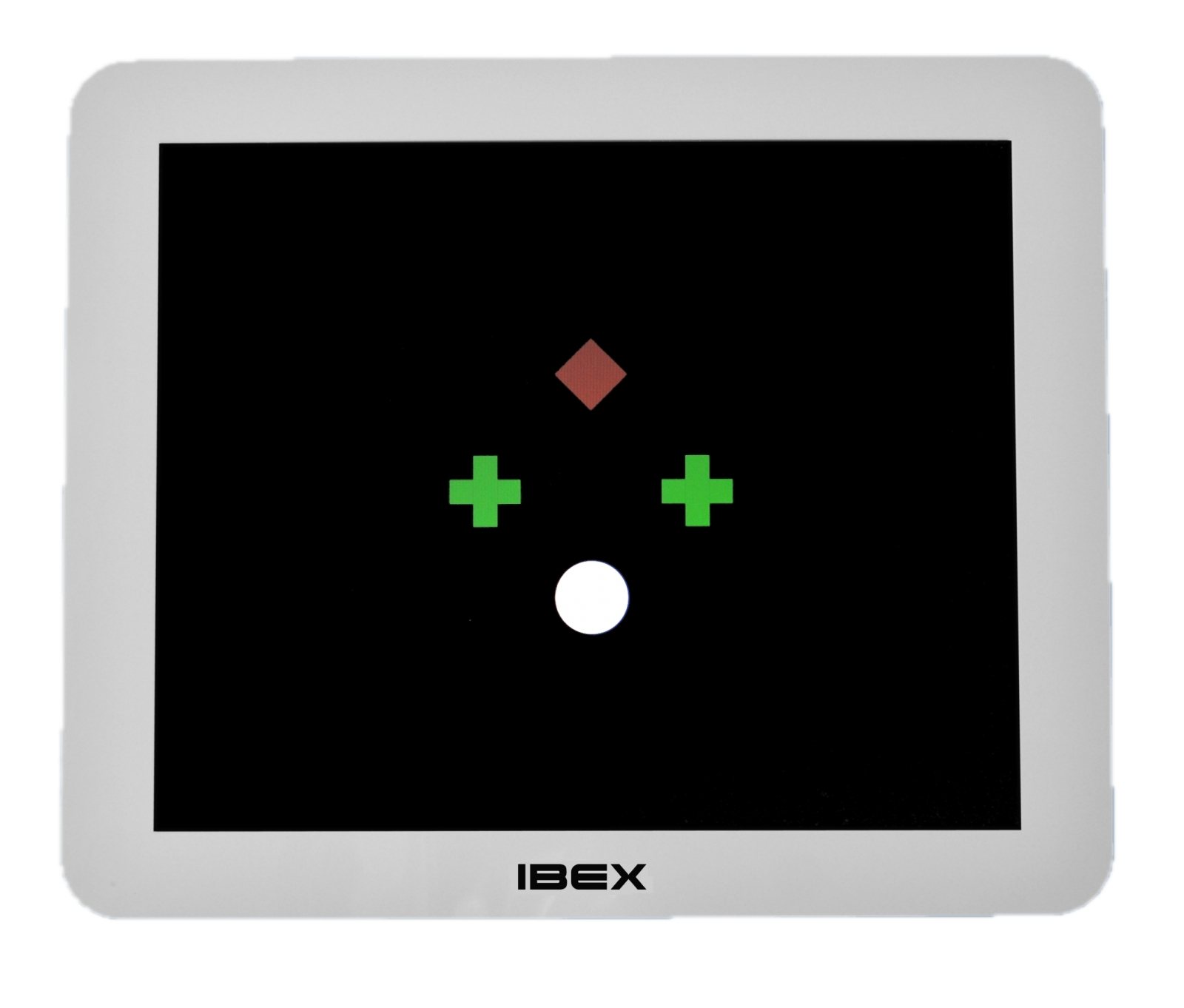

 Worth Four Dot |

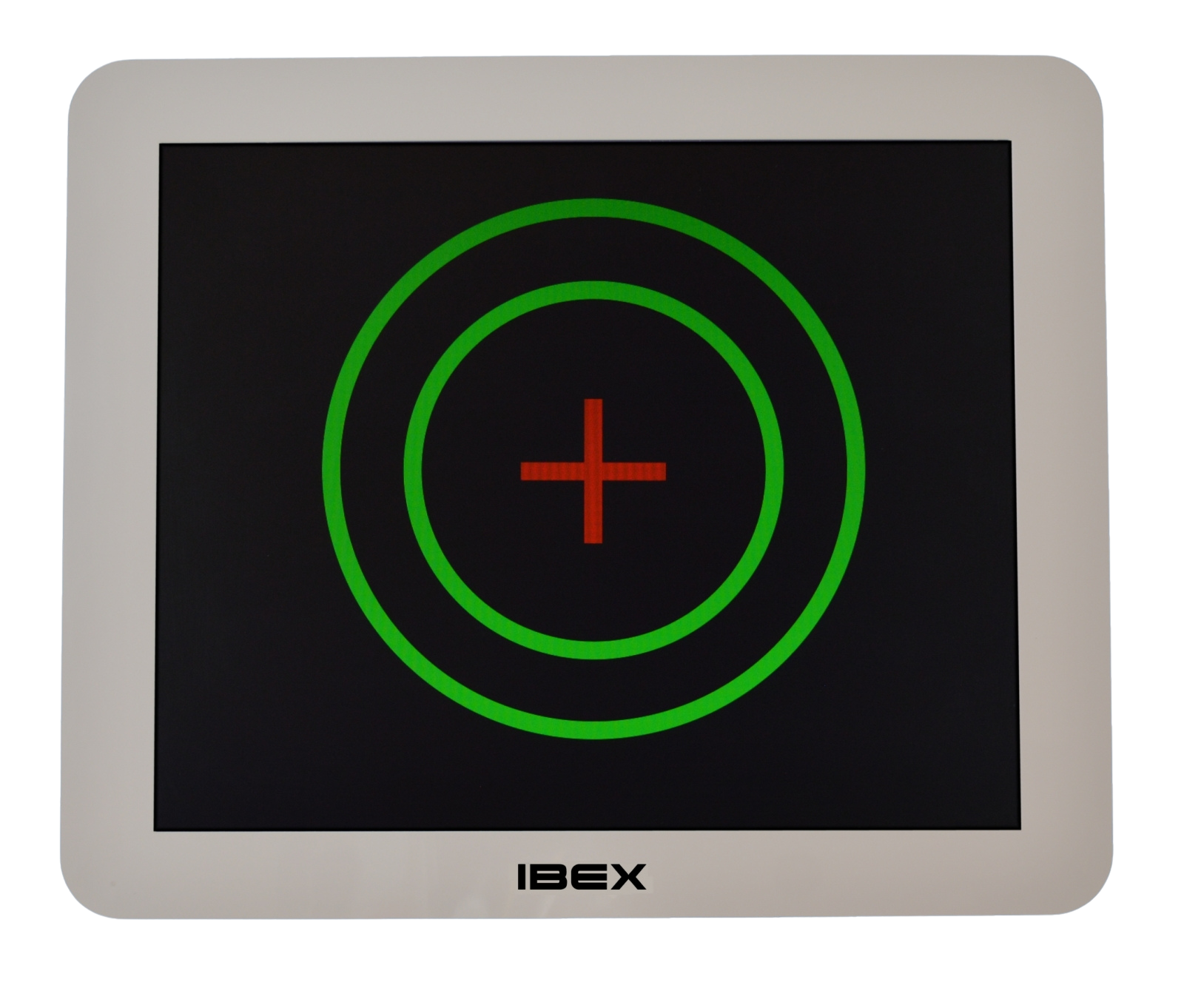

 Schober |
 Traffic Lights |

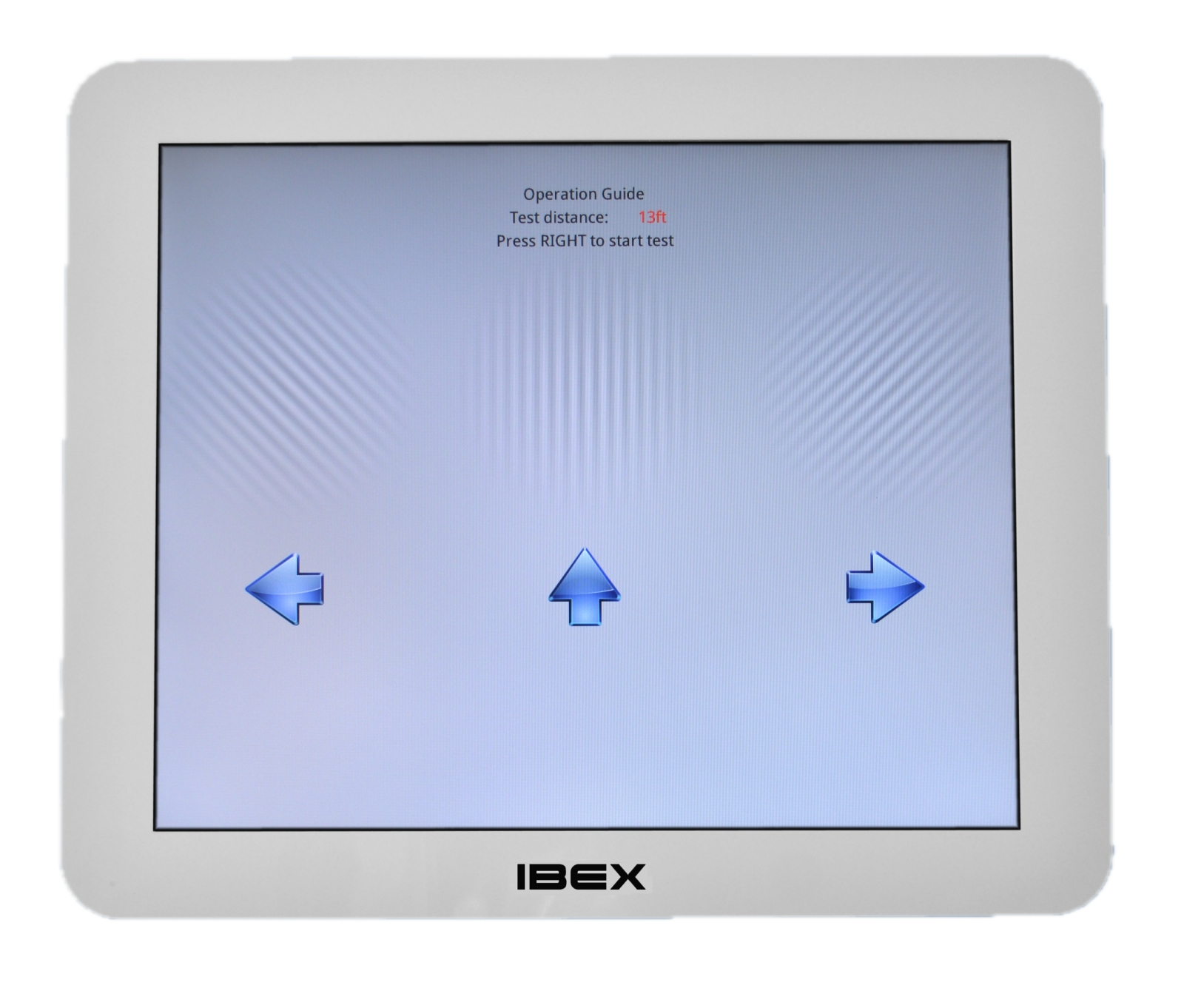

 Contrast Sensitivity |

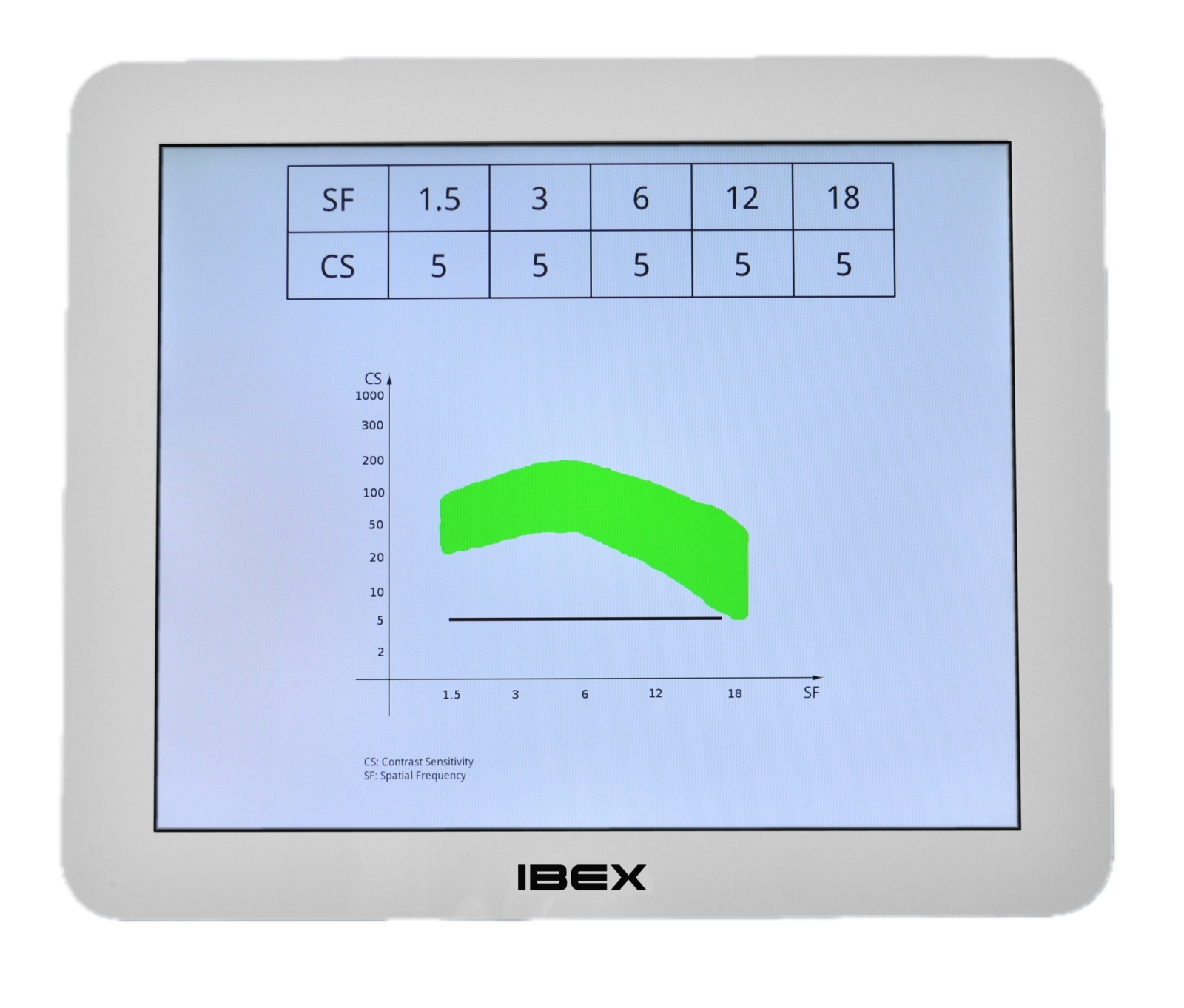

 Contrast Test Result |
Masking Functions

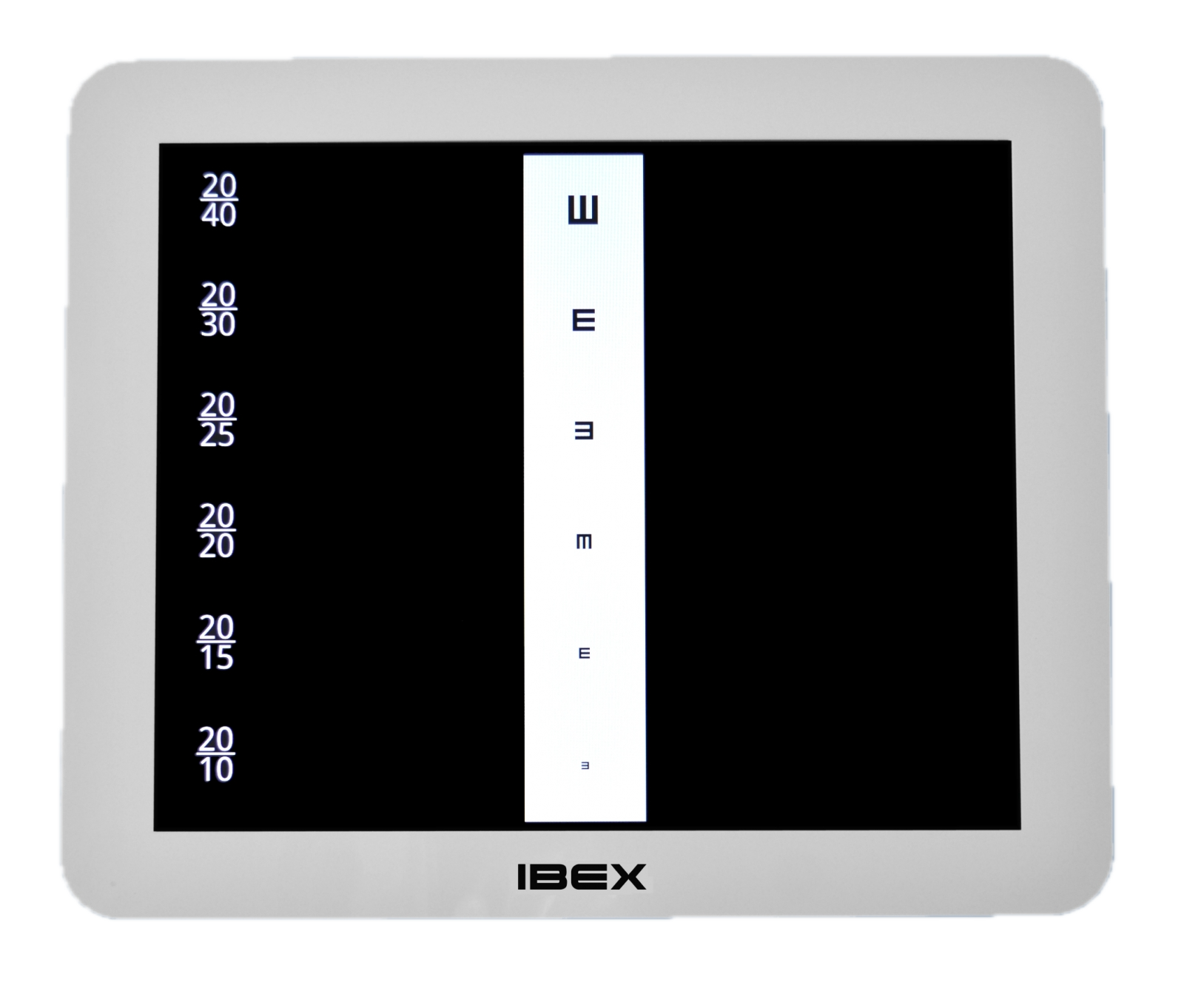

 Vertical Line Mask |
 Horizontal Line Mask |

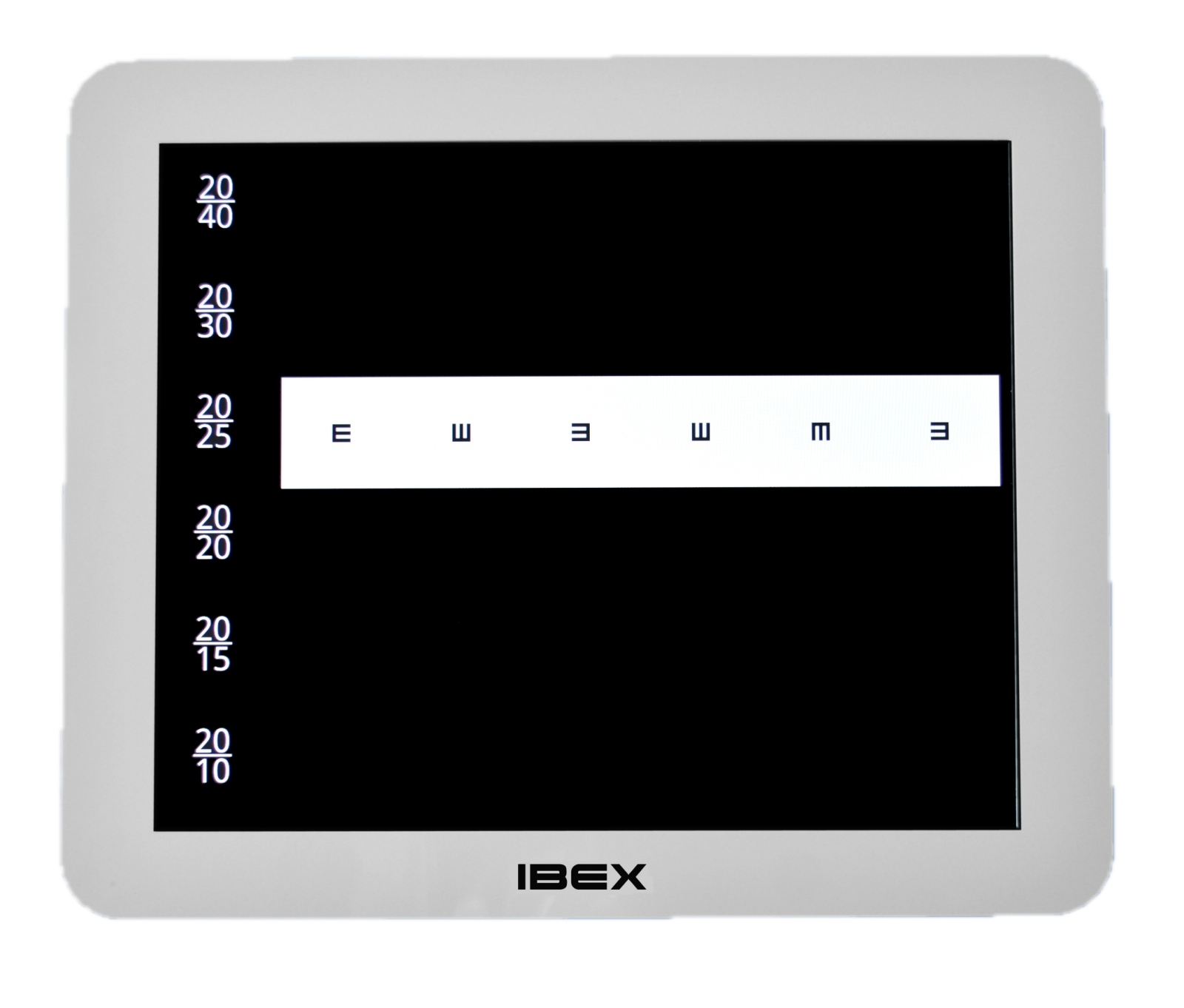

 Single Selection Mask |

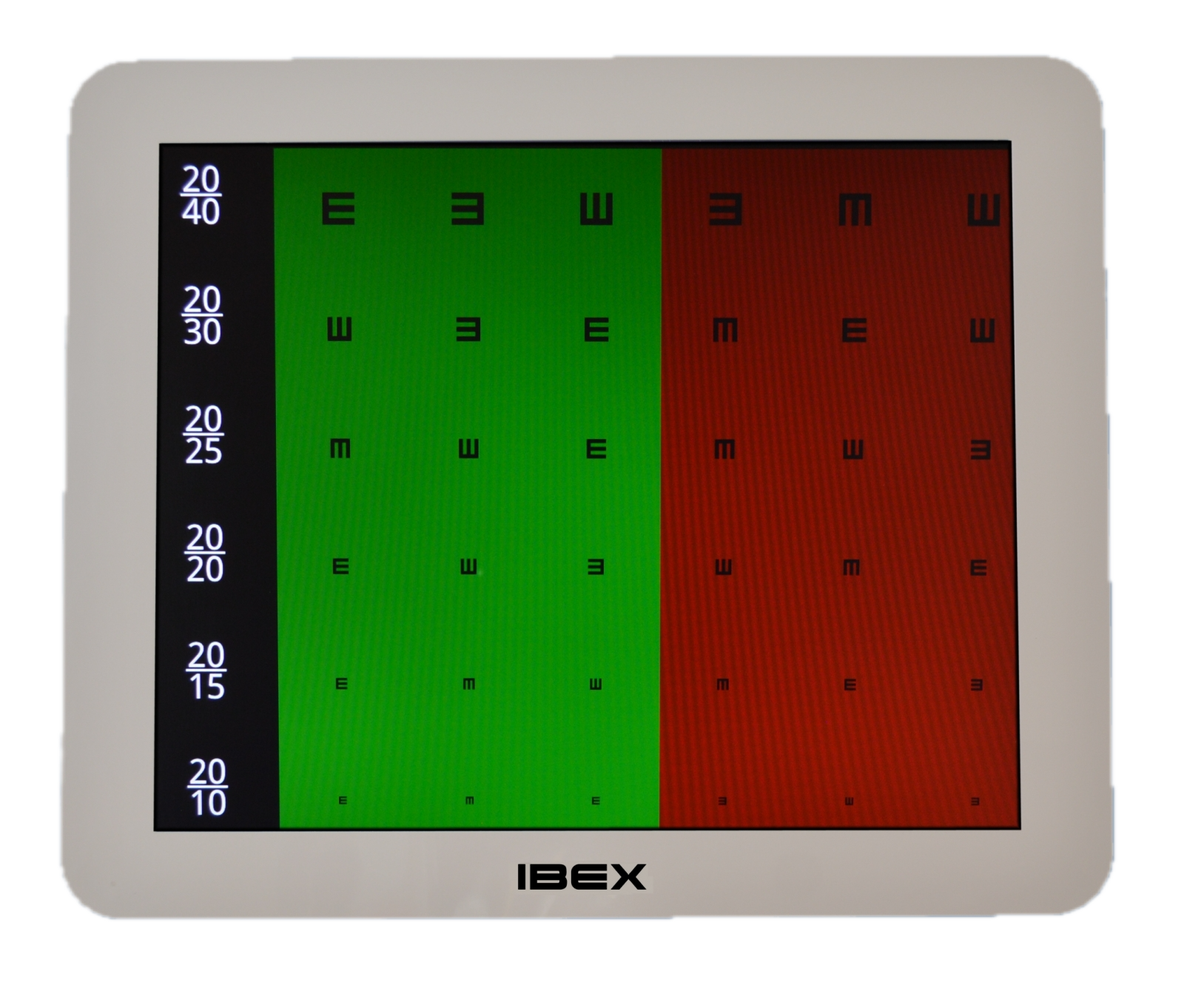

 Red Green Panel |
Contrast Testing
 9% Contrast |

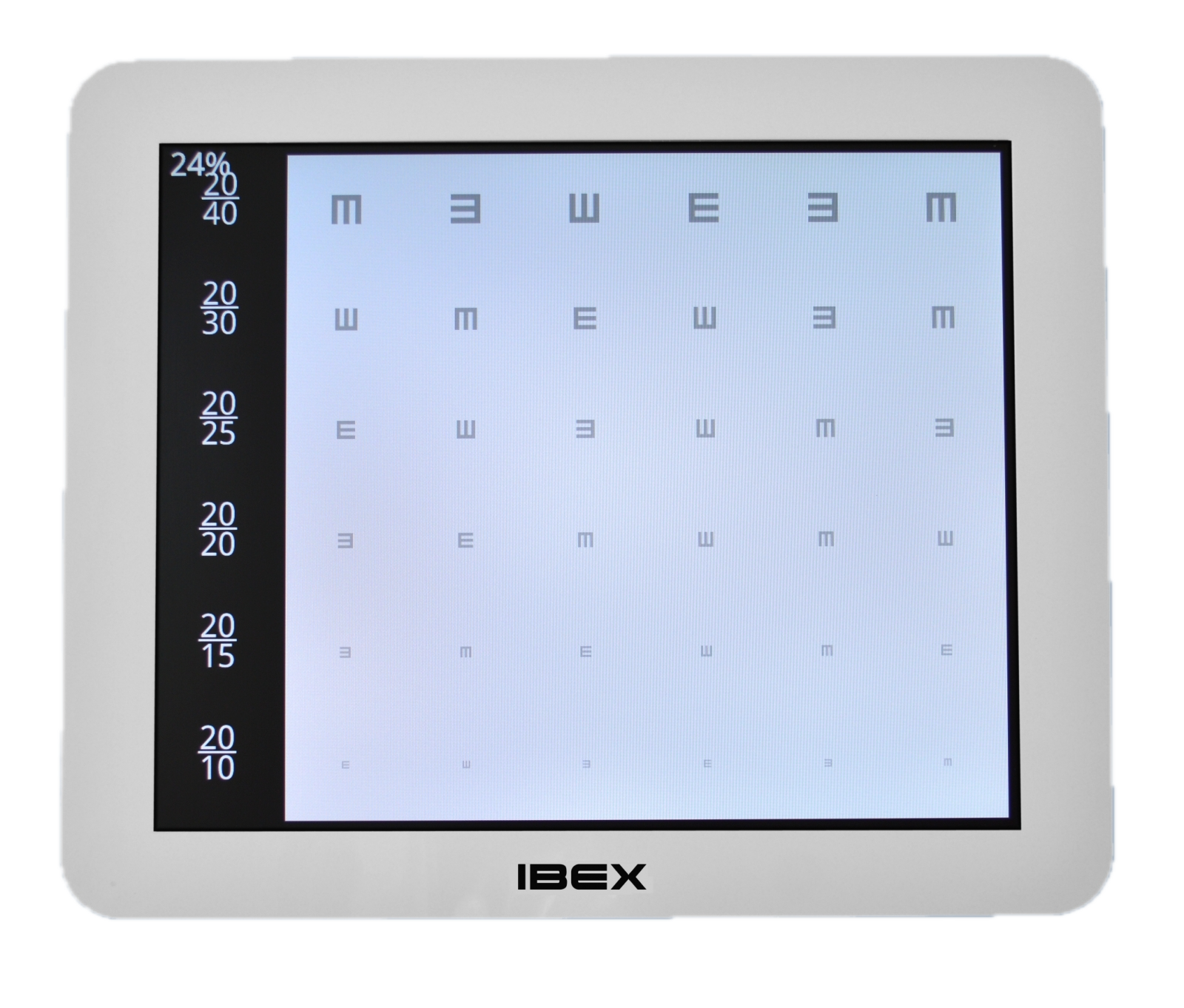

 24% Contrast |
 68% Contrast |

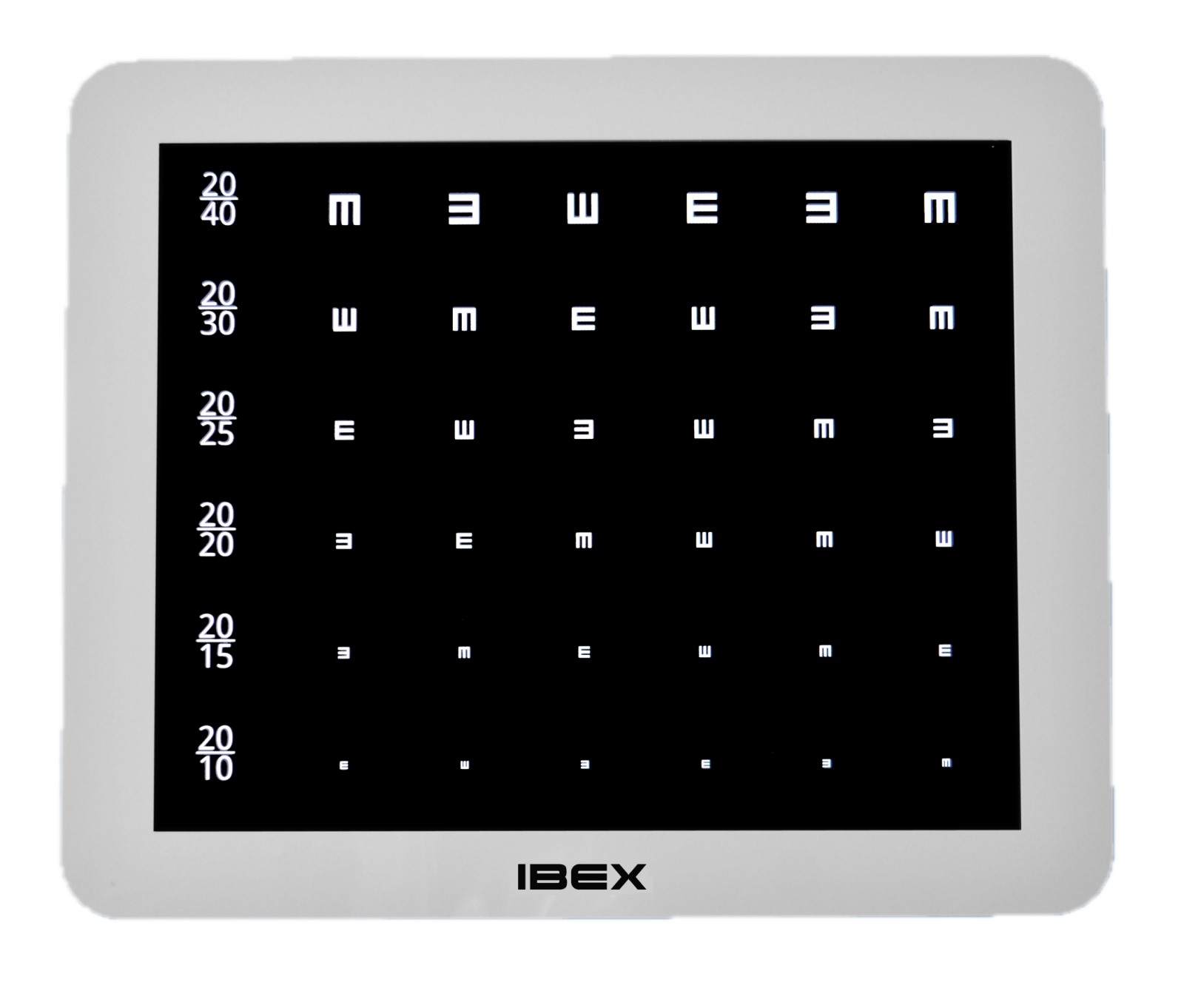

 Contrast Tumbling E |
 Negative Contrast |
Patient Education
 General Education |

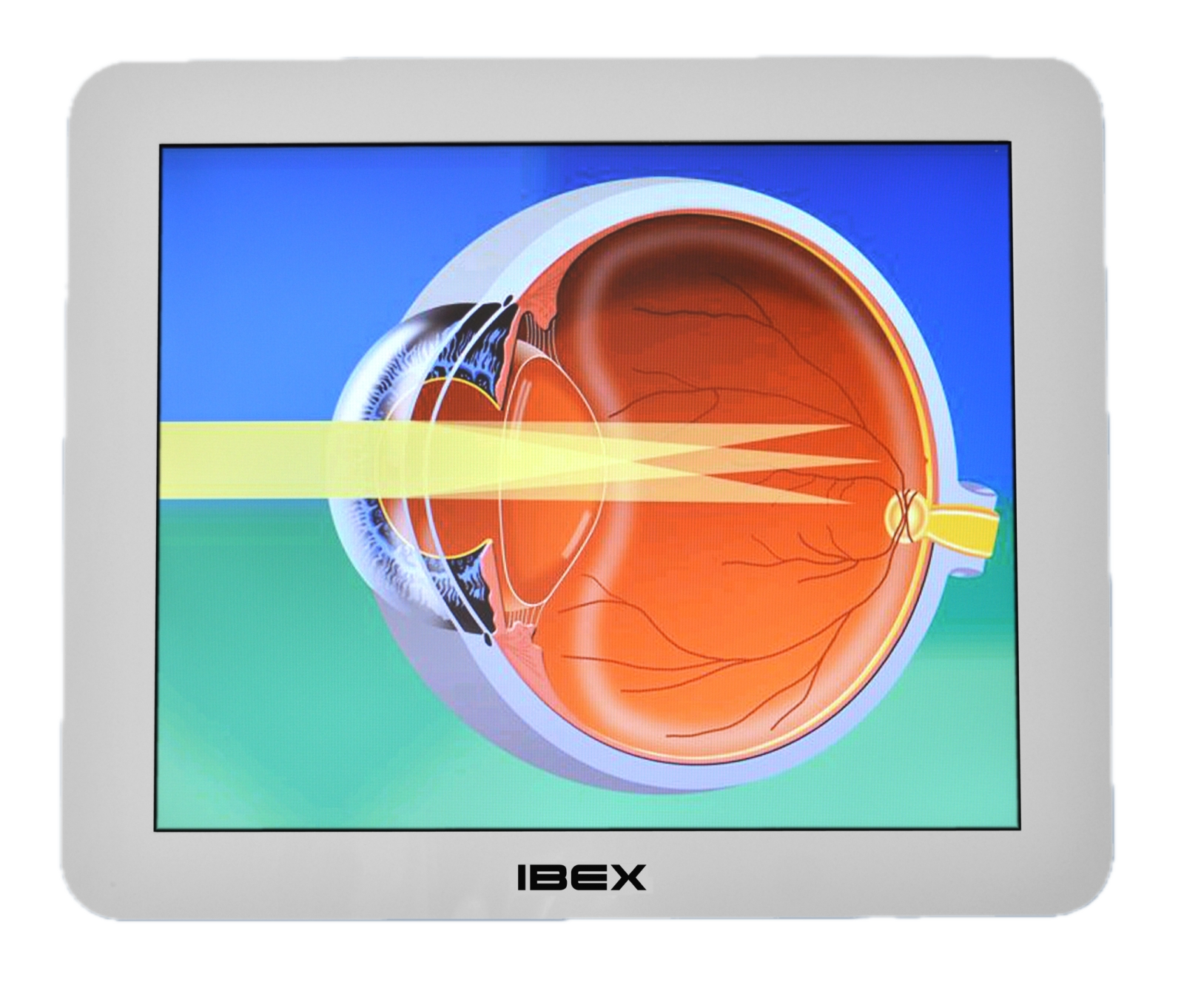

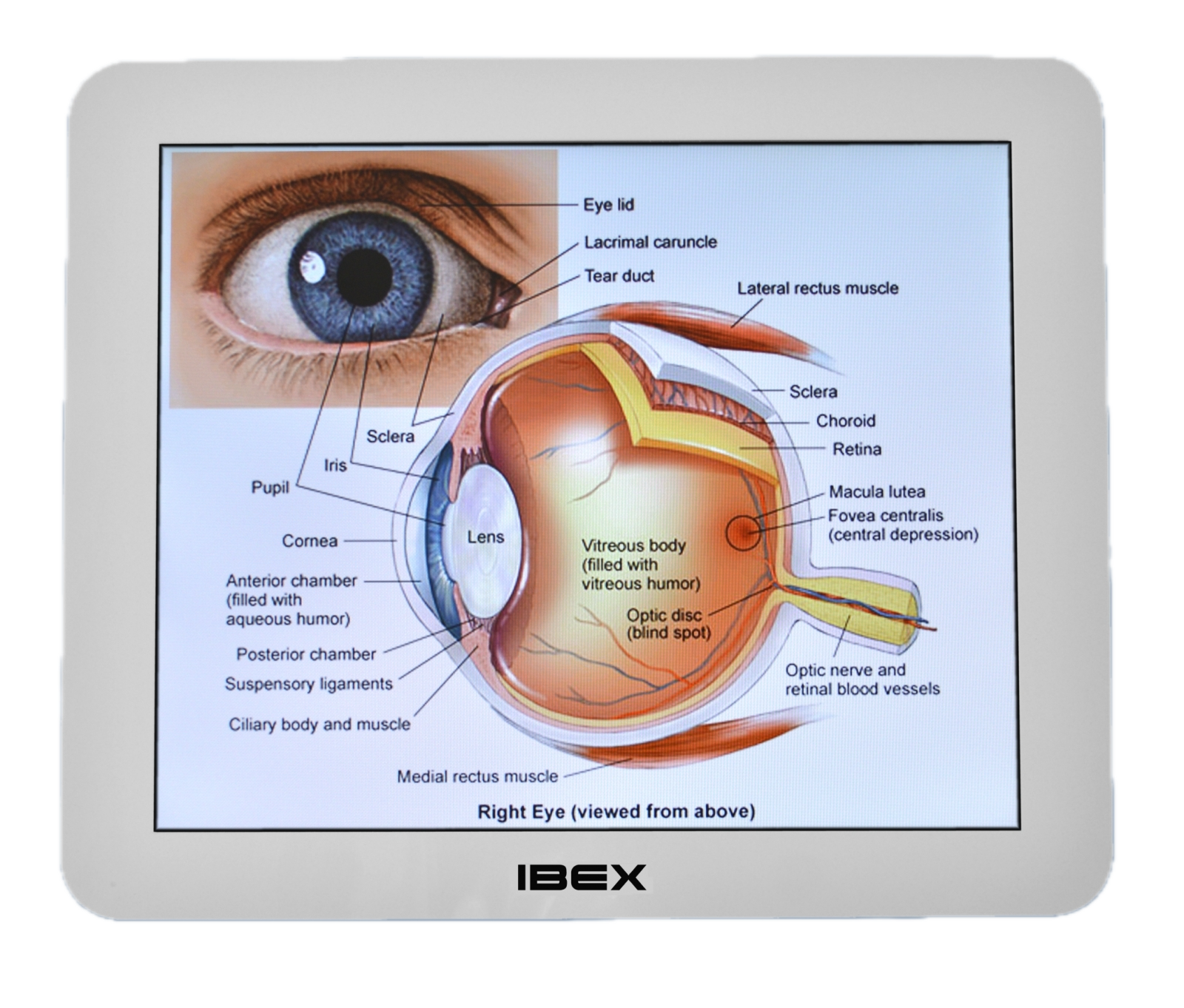

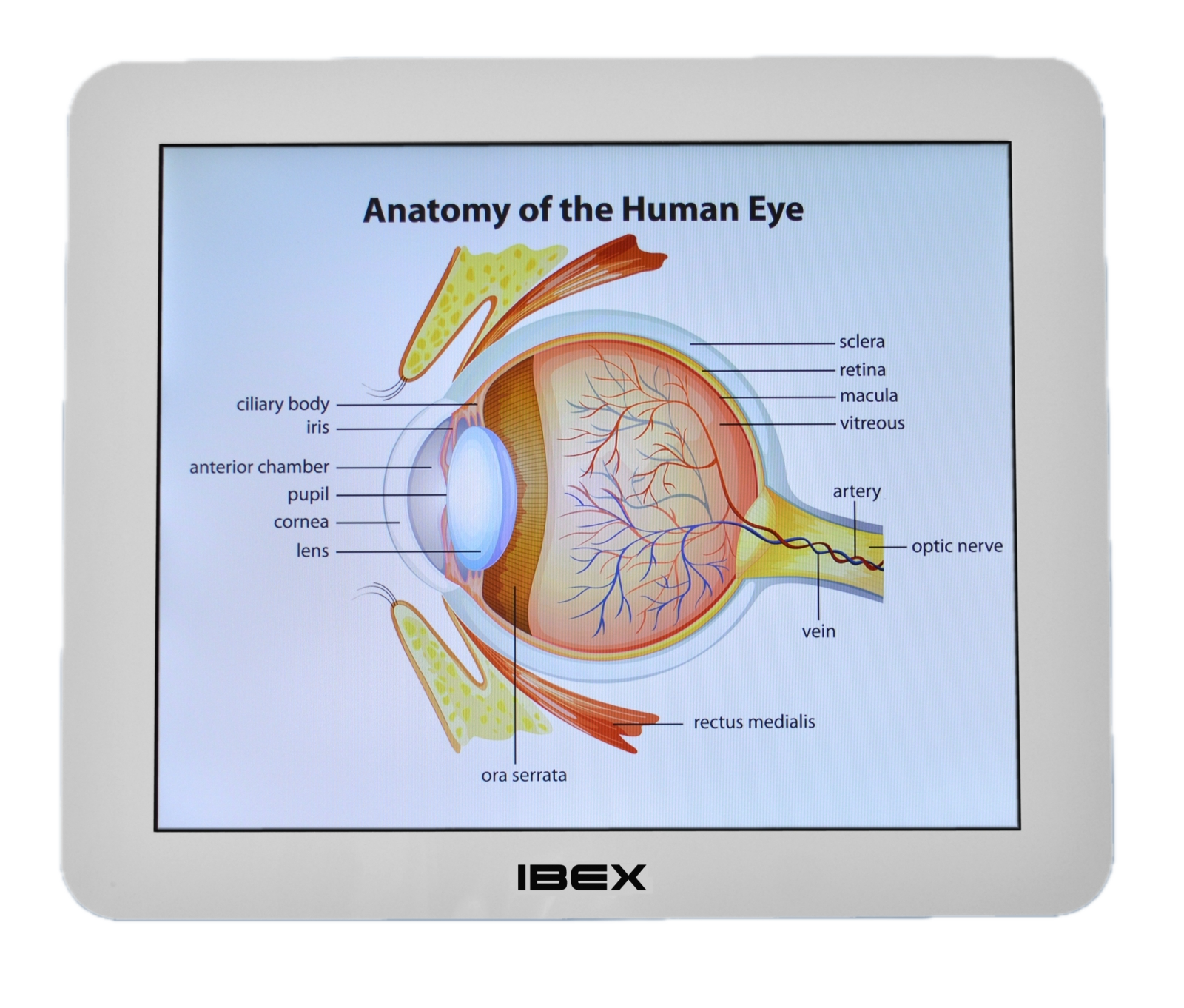

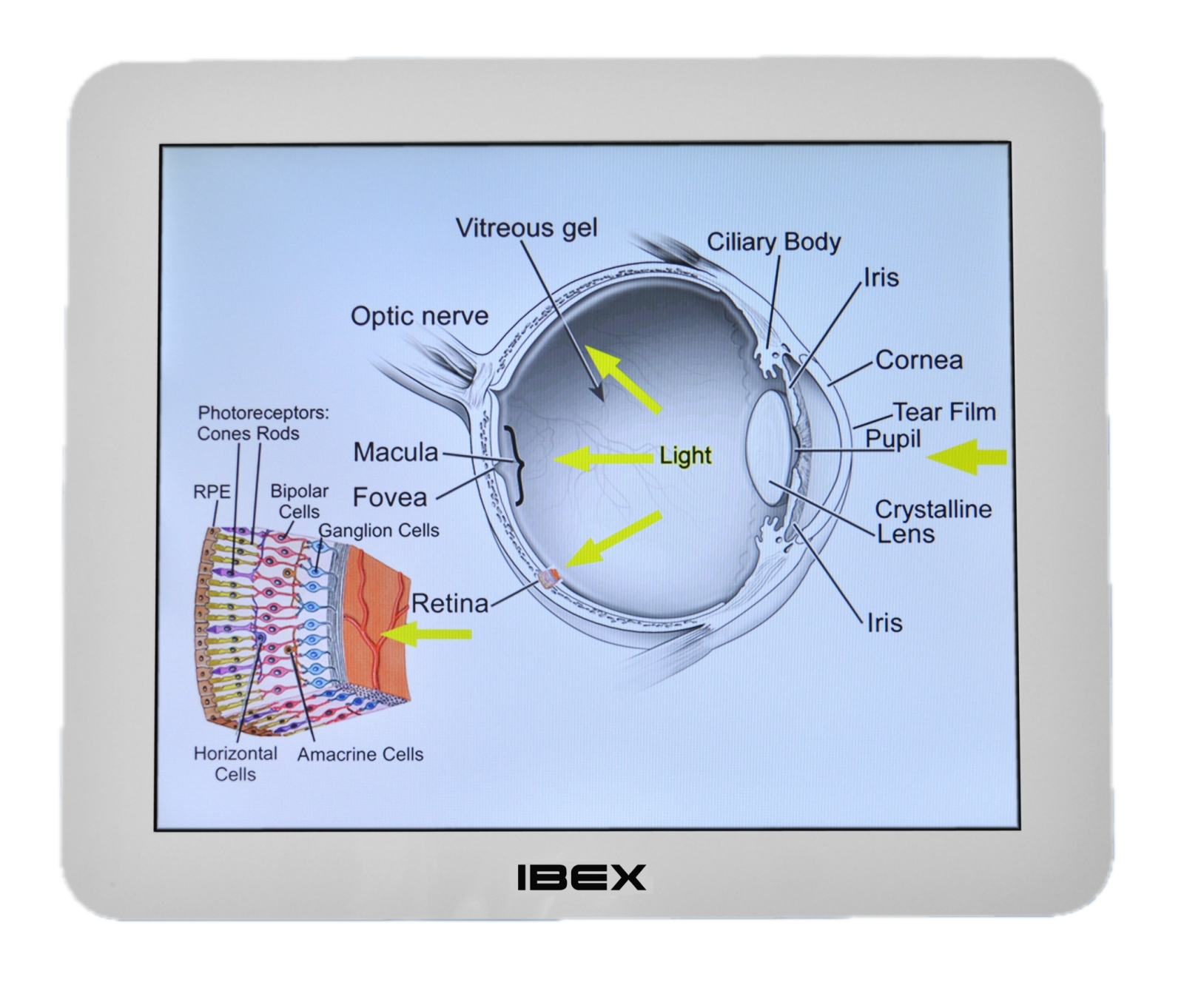

 Eye Anatomy |
 Pupil Education |

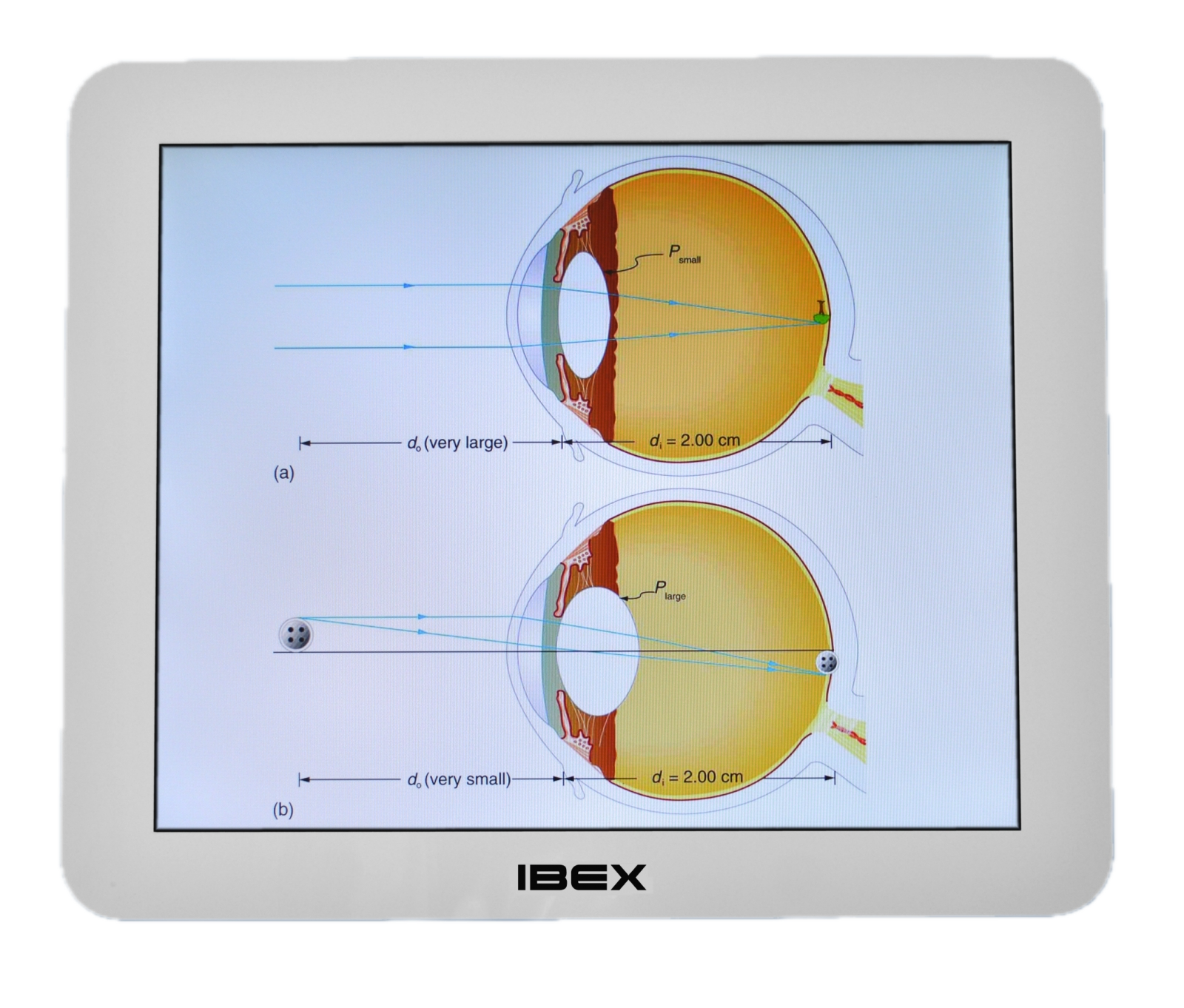

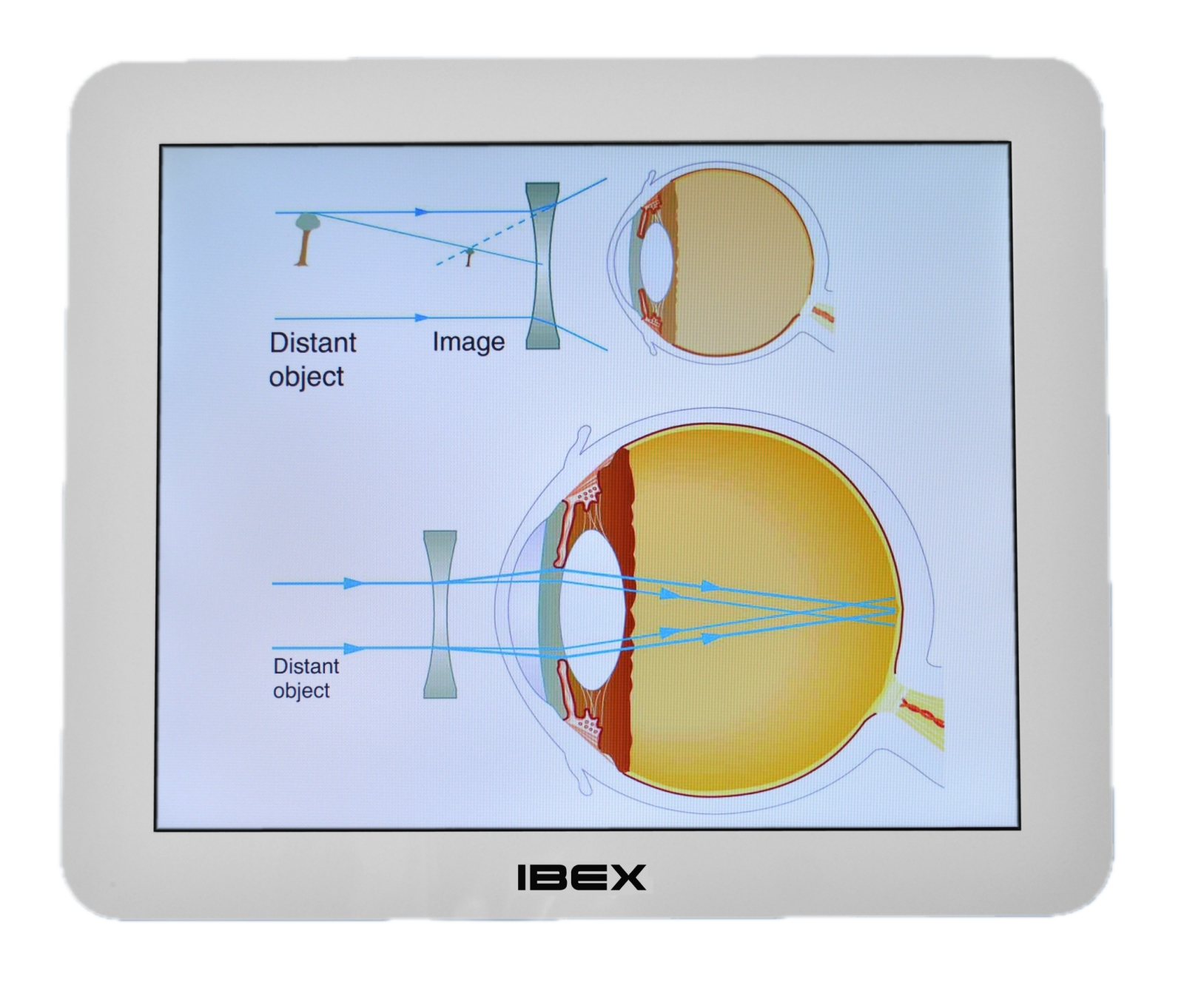

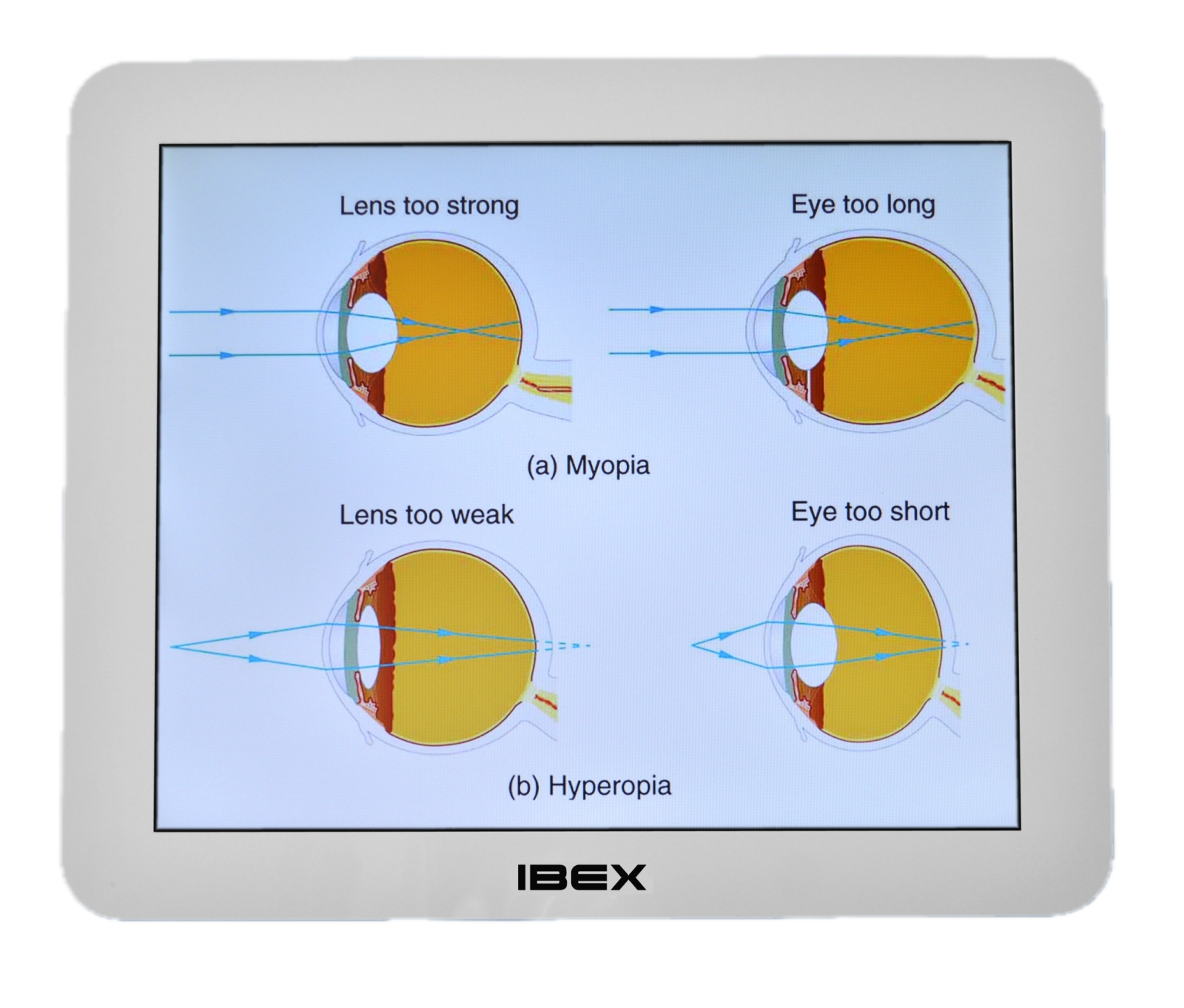

 Lens Education |
 Lens Education 2 |

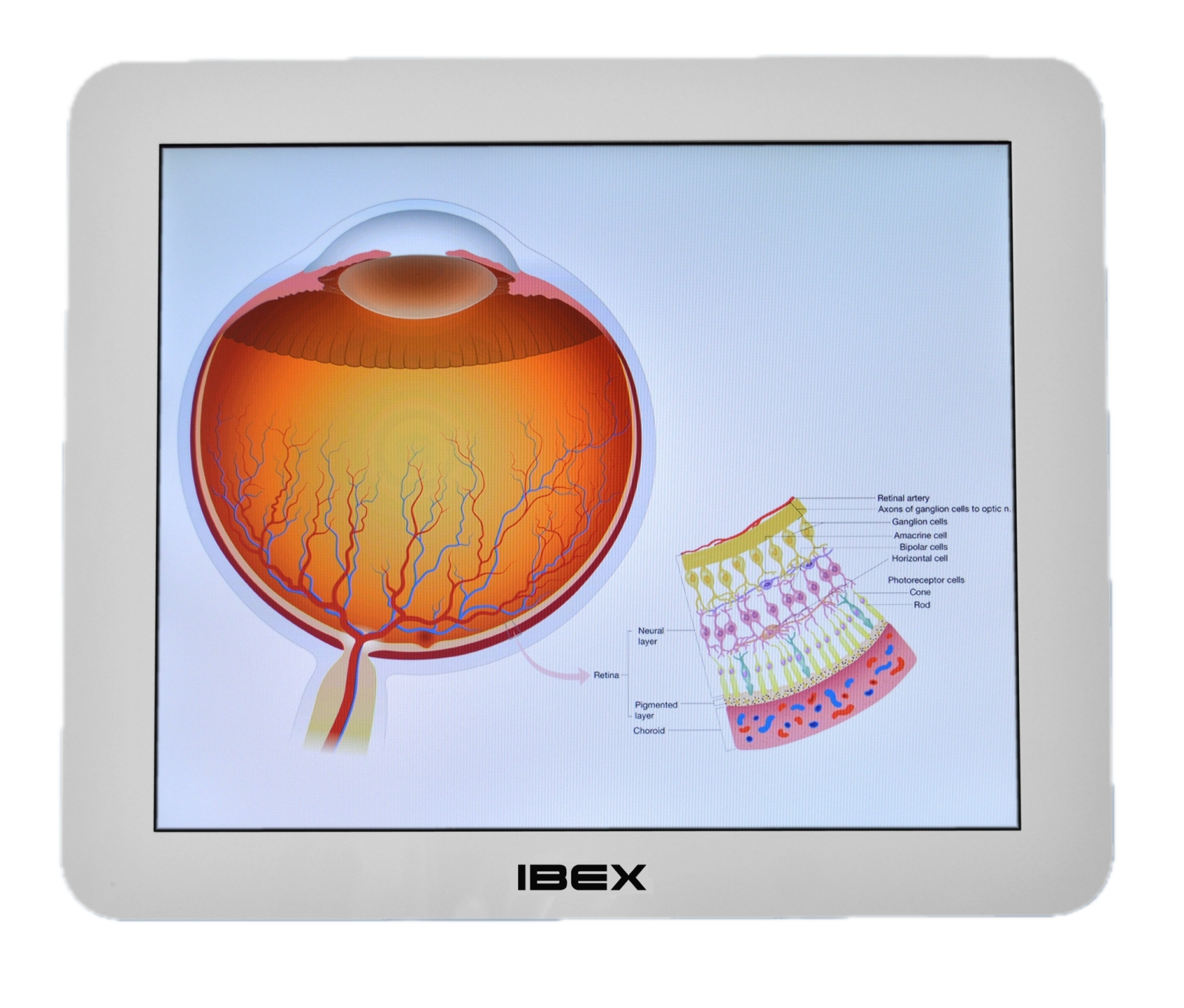

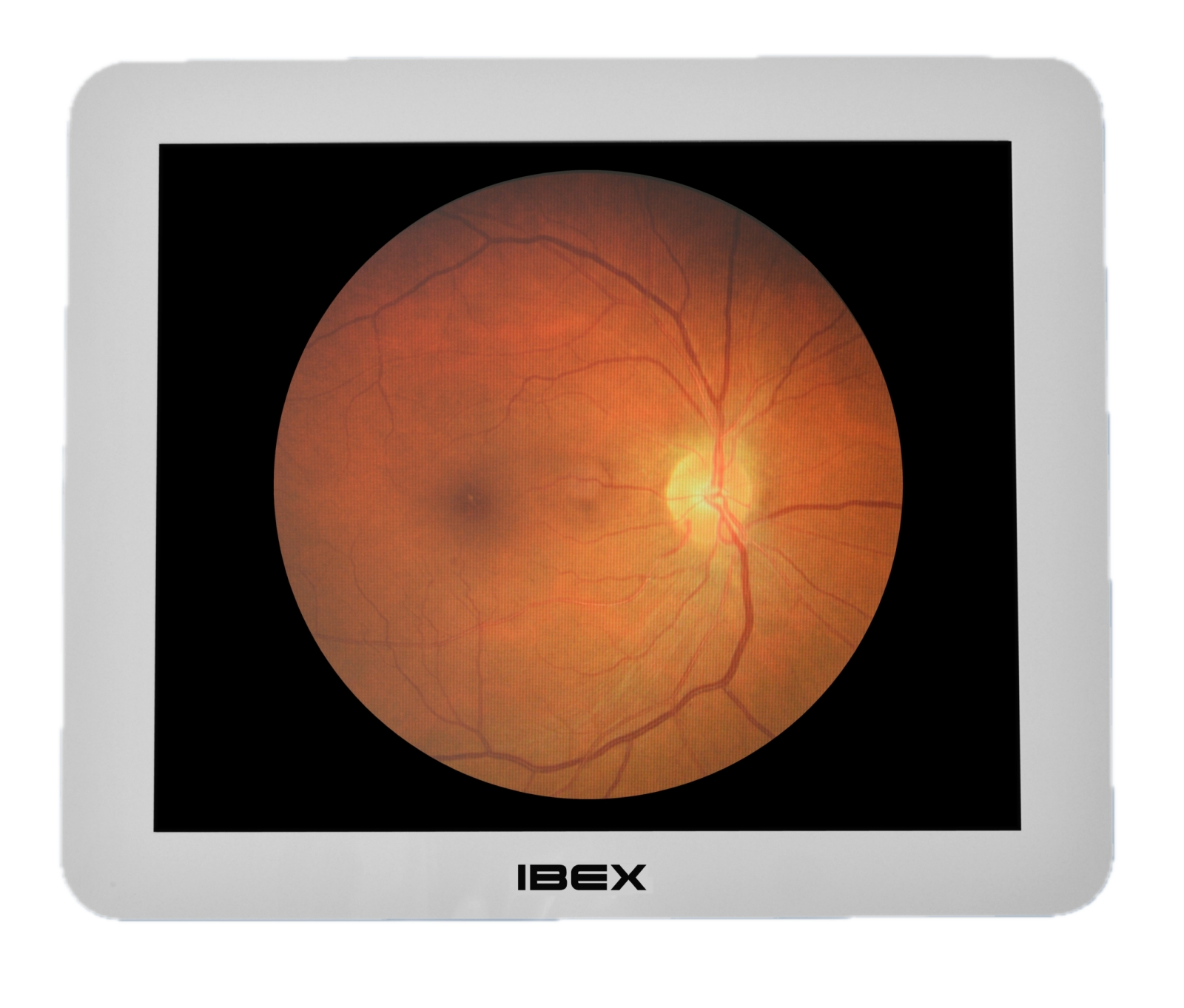

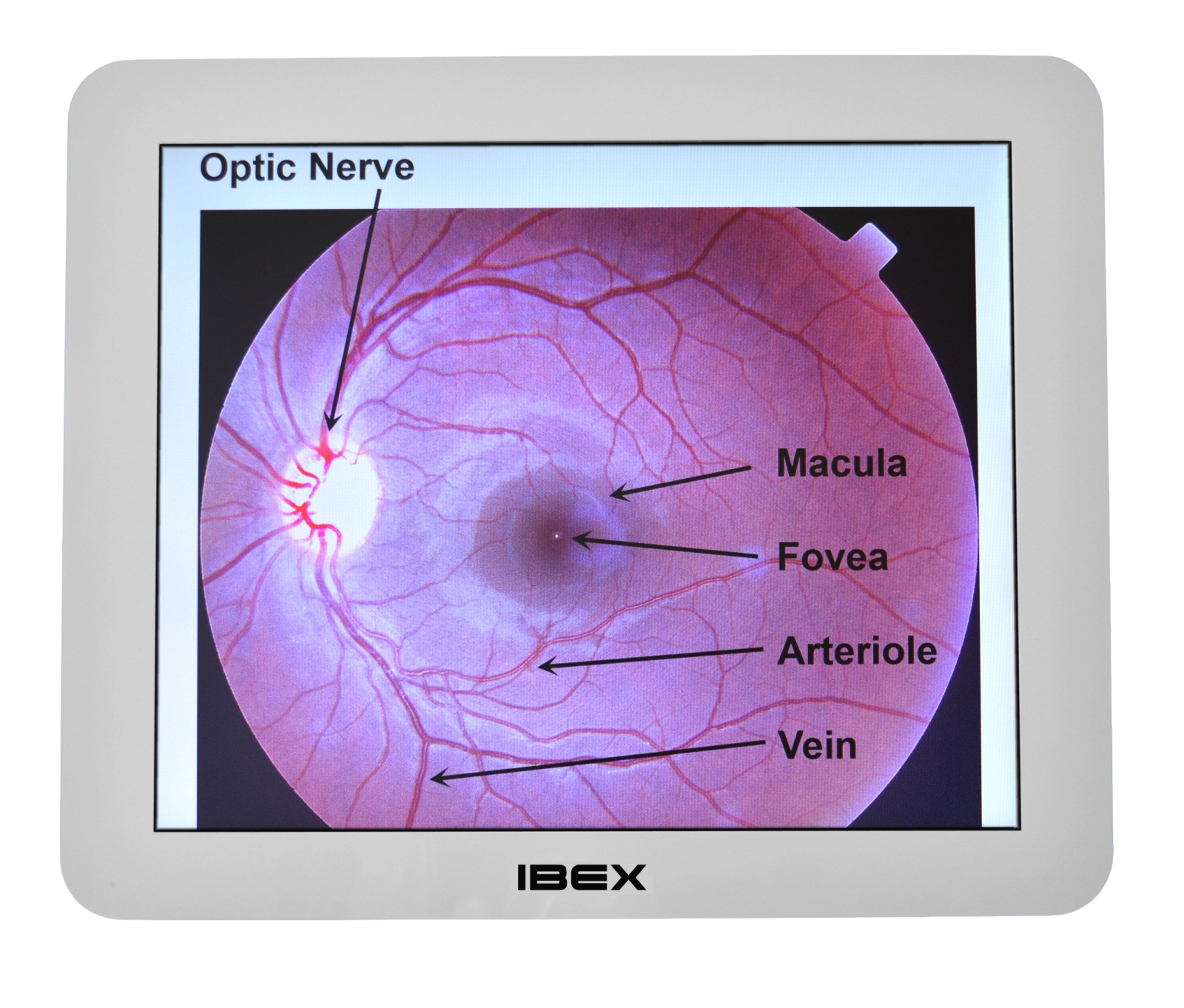

 Retina Education |
 Retina Education 2 |

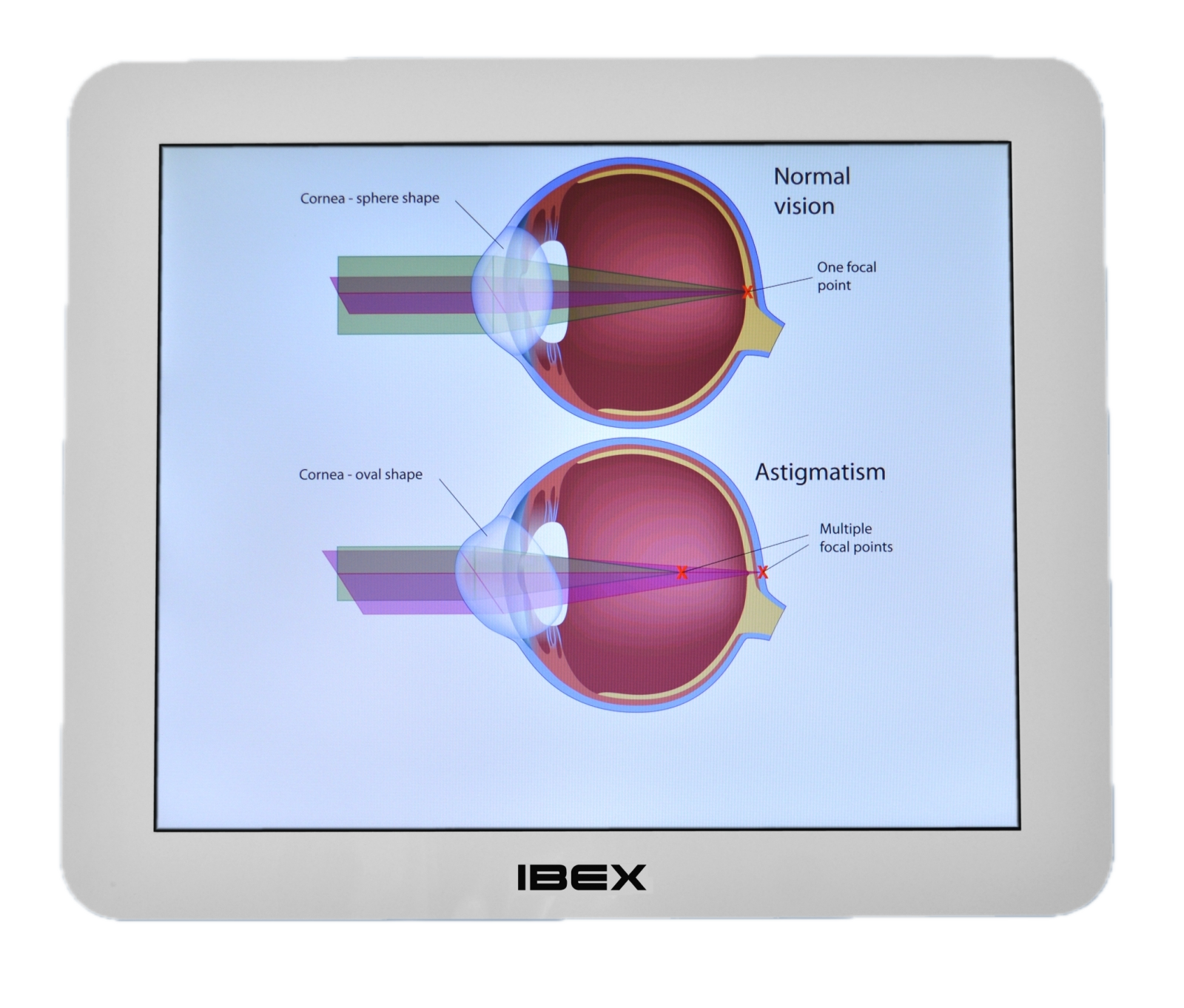

 Astigmatism |
 Eye Drawing |
 Optic Nerve |
 Eye Image |

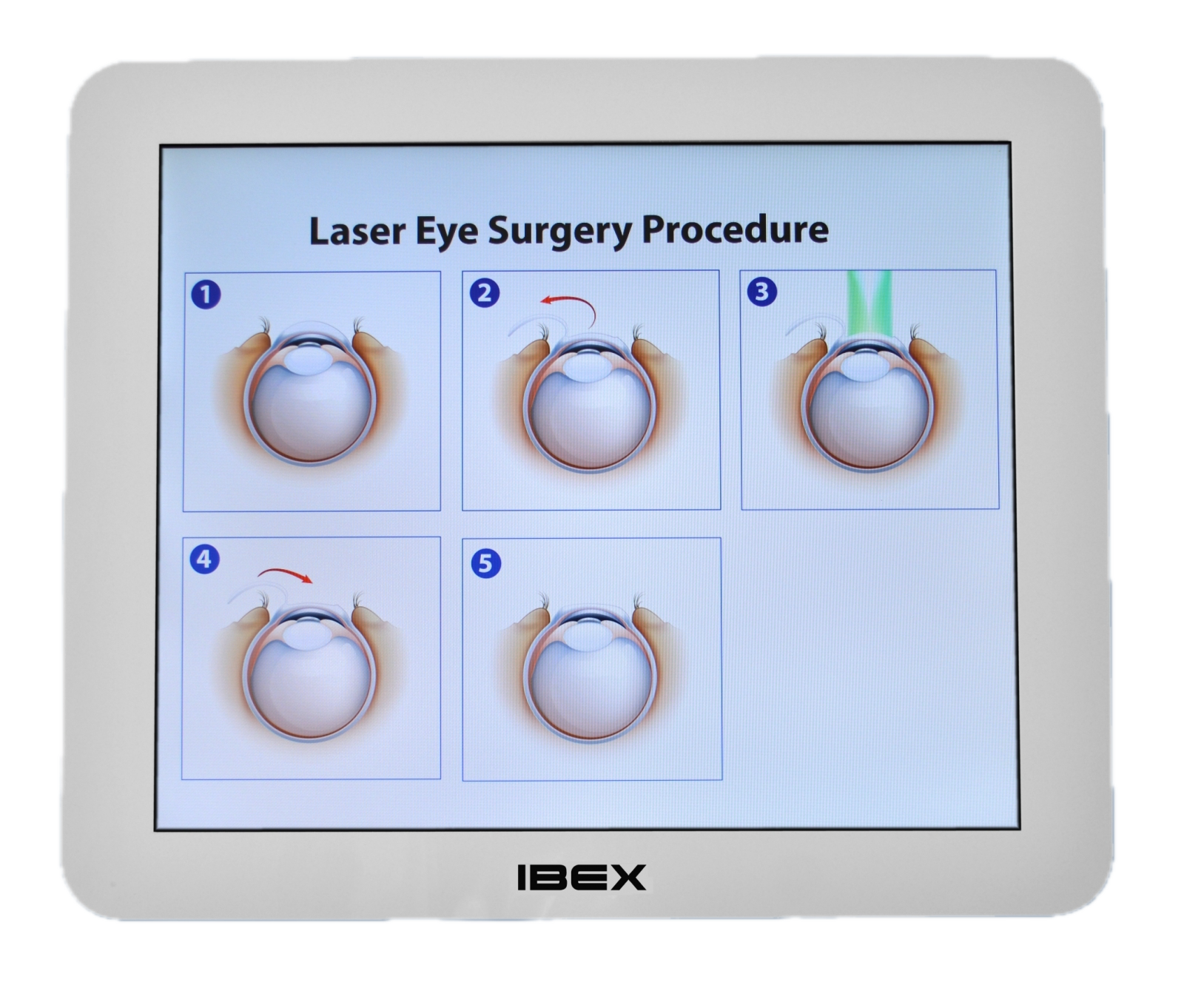

 Laser Eye Surgery |
 |
Three-Year Comprehensive WarrantyThis IBEX product is guaranteed for thirty-six months against faulty workmanship, materials or factory assembly. The Warranty is a Return-To-Base (RTB) Basis at the cost of the customer. All parts and services rendered are included at no additional cost to the customer and in most cases the work is completed within 2-3 working days. Free Shipping & Easy Installation Kit (included)The All-In-One Acuity System is packed into our easy to carry carton and shipped direct to your office by FedEx. Unpacking and installation takes 20 minutes or less and includes our installation kit complete with power screwdriver, mounting hardware, level and wire covers. We too enjoy purchasing products that are easy and fast to setup, so rest assured, we’ve made sure this part is easy. For those of you who don’t want to lift a finger, we work with more than 100 independent service techs throughout the US and can arrange full service installation in most areas. |
IBEX vs The Competition |

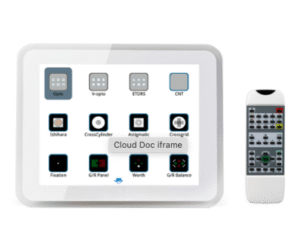

 IBEX LCD Vision Chart |

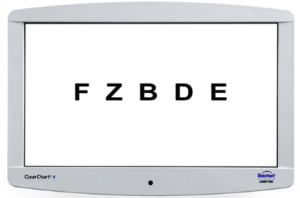

 Reichart ClearChart 4 |

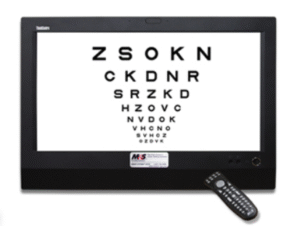

 M&S Technologies Smart System standard |
|||
| General | ||||||
| Platform | All-in-one | External Junction Box | Lenovo All-in-one | |||
| Display Size | 17″ | 24″ | 20″ | |||
| Dimension (L/W/H) | 17.3″ X 14.5″ X 1.57″ | 23.20″ X 15.60″ X 3″ | 19.9′ X 16.7″ X 9.8″ | |||
| Weight | 5.5lbs | 10lbs | 19.49lbs | |||
| Controller Type | IR Remote Control | IR Remote Control | IR Remote Control or optional tablet | |||
| Working distance (Direct-Throw) | 6ft to 24ft | 6ft to 24.6ft | N/A | |||
| Scale | ||||||
| 5-Grade | yes | no | no | |||
| Decimal | yes | yes | yes | |||
| LogMAR | yes | yes | yes | |||
| Snellen (ft) | yes | yes | yes | |||
| Snellen (Meter) | yes | yes | yes | |||
| Optotypes | ||||||
| Square Configuration | yes | yes | yes | |||
| V Configuration | yes | yes | yes | |||
| 17 letter Set | no | yes | yes | |||
| 8 letter Set | no | yes | yes | |||
| Sloan Letter | yes | yes | yes | |||
| Snellen Chart | yes | yes | yes | |||
| Tumbling E | yes | yes | yes | |||
| Landolt C | yes | yes | yes | |||
| HOTV (Pediatrrics) | no | yes | yes | |||
| Numbers | yes | yes | yes | |||
| Generic Pediatric Pictures | yes | yes | yes | |||
| Lea Symbols | no | yes | yes | |||
| Lea Numbers | no | yes | yes | |||
| Allen Symbols | yes | yes | yes | |||
| Random Chart | yes | yes | yes | |||
| Masking | ||||||
| Single | yes | yes | yes | |||
| Vertical | yes | yes | yes | |||
| Horizontal | yes | yes | yes | |||
| Red / Green | yes | yes | yes | |||
| Character Contrast Mode | yes | yes | yes | |||
| Optotypes Size Display | yes | yes | yes | |||
| Specialty Chart | ||||||
| Contrast sensitivity test (sine-wave grating) | yes (Unique test sequences) | yes (only available in model 4X) | yes | |||
| EDTRS | yes | yes | yes | |||
| Low Visionj | yes | yes | yes | |||
| Cross Cylinder | yes | yes | yes | |||
| Astigmatic Test | yes | yes | yes | |||
| Ishihara | yes | not disclosed | yes | |||
| Cross Grid | yes | yes | yes | |||
| Fixation Point | yes | yes | yes | |||
| Worth Four Dot | yes | yes | yes | |||
| Binocular Balance | yes | yes | yes | |||
| Coincidence Test | yes | yes | yes | |||
| Schober Test | yes | yes | yes | |||
| Traffic Light (Signal Test) | yes | no | no | |||
| Glare Test | no | no | yes (with add on ligth sources) | |||
| Stereopsis (Binocular) | yes | yes | yes | |||
| CBAR (Crown Bars) | yes | yes | yes | |||
| Others | ||||||
| Play Movie | yes | yes | yes | |||
| Customizable Test Sequence | yes | yes | yes | |||
| Including Wall Mount | yes | yes | N/A | |||
| Software upgradeable | yes | yes | yes | |||
| Expansion Slot (USB, SD card) | yes | yes | yes | |||
| Integrate with Motorized Refractor | no | yes | yes | |||
| Warranty | 3 Years | not disclosed | 1 year | |||
| Retail Price | $1,995 | $2,895 |
